Y8 Hand held Rock Drill

Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Category:

Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Y8 Hand held Rock Drill-ProDrill



Y8 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.

Y8 Hand held Rock Drill-ProDrill

Product features:

Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Specification:

Model Y6 Y8 Y10 Y20 Y19A Y24 Y26 Y28
Weight(kg) 6 6 10 18 19 24 26 26
Air consumption (L/s) ≤9.5 <9.0 ≤9 25 43 ≤50 ≤47
length (mm) 426 428 458 605 600 604 650 661
shank (mm) 15*88 15*88 15*88 22*108 22*108 22*108 22(25)*108 22*108
Bore Dia (mm) 20 20-30 20-30 30-42 30-42 30-42 30-42 34-42
Drill depth (m) 0.5 0.5 0.5 3 5 5 5 5
Impact rate (Hz) 51 51 ≥51 34 35 30 27 ≥28
Hose connection(mm) 13 16 or19 19 19 19
Air pressure(Mpa) 0.4-0.63 0.2-0.3 0.4 0.4 0.4

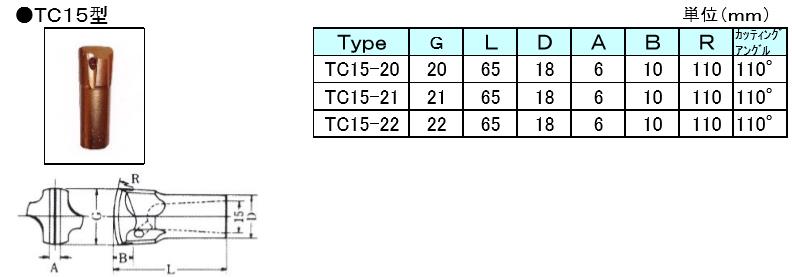

Model Y8 Hand-held Rock Drill can match TC-15 Chisel Button Bit

Y8 Hand held Rock Drill-ProDrill

Y8 Hand held Rock Drill-ProDrill
