Y20LY Hand Held Rock Drills for quarrying & demolition

Category: Tag:

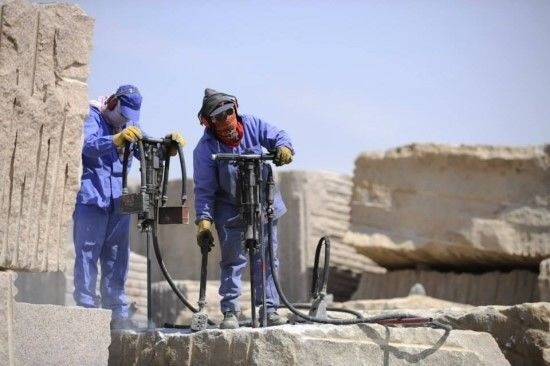

Rock drilling tools manufacturer ProDrill offers high quality Y20 Hand held Rock Drills, powered by pneumatic drive from air compressor, and used for small-hole drilling such as granite, marble, limestone quarrying. And for small size construction, and demolition work, hole size scope 30mm-40mm, match Tapered Drill Rods, Tapered Drill Bits, or Integral Drill Rods together for a drilling use. Y20 hand jack hammer is a light-duty drilling tools with stronger and stable drilling performance, and easy to use, simple repair, price is very competitive, so still popular in stone quarry market for most of following countries such as India, Africa, even Saudi Arabia. Now European quarry owners use hydraulic rock drills to replace Air jack hammers for quarry drilling holes, or blasting bore holes.

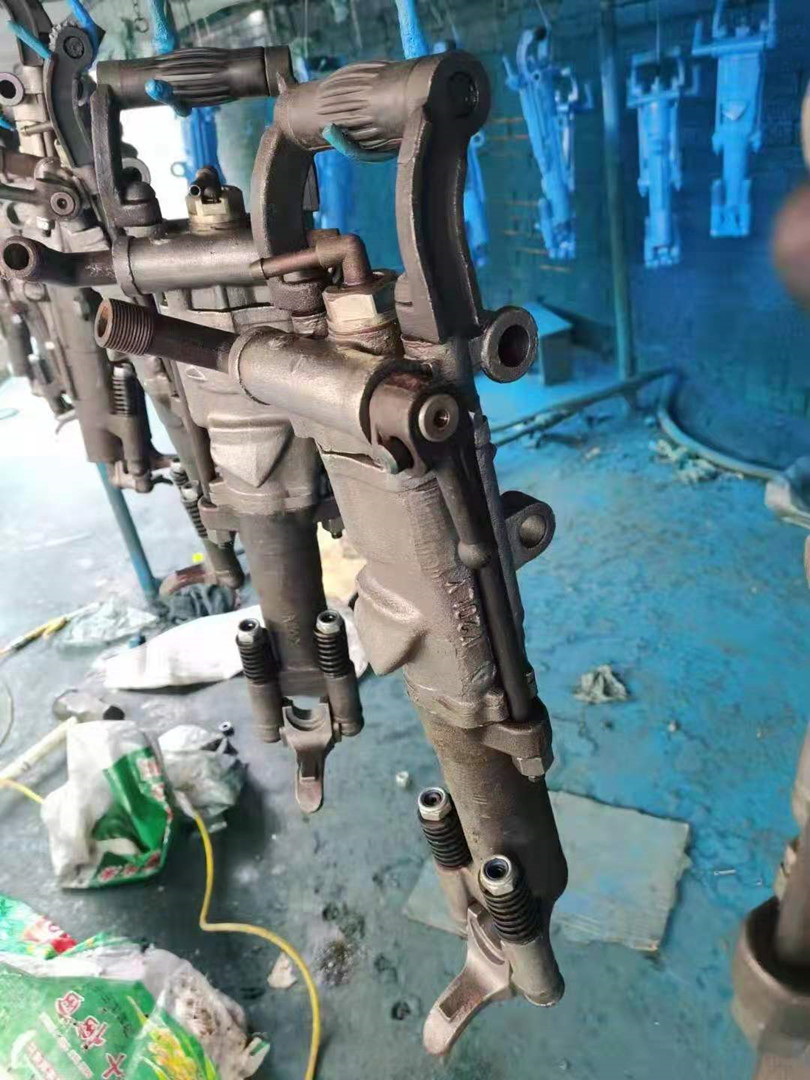

Y20LY Hand Held Rock Drills for quarrying & demolition-ProDrill Y20LY Hand Held Rock Drills for quarrying & demolition-ProDrill

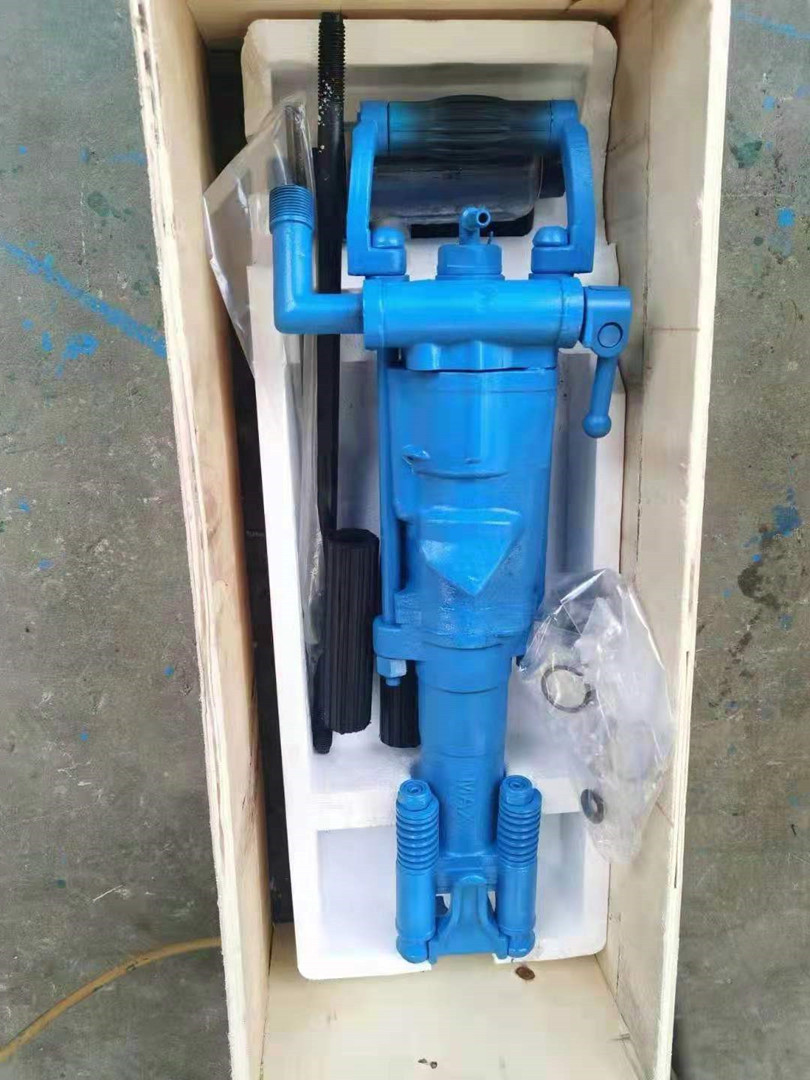

Y20LY Hand Held Rock Drills for quarrying & demolition-ProDrill

     Y20LY型凿岩机及配件单价表　　　单位：元／件
Code Part No. Name 名称 Price(RMB)
Y20LY Rock Drill（Casting) 凿岩机(铸件） 670.00
1 Y20LY-1.05 Valve cover 阀盖 22.00
2 Y20LY-1.04 Valve 阀 19.00
3 Y20LY-1.03 Valve chest 阀柜 24.00
4 Y20LY-1.02 Ratchet 棘轮 17.00
5 Y20LY-1.09 Rifle bar 螺旋棒 23.00
6 YT24-1.15 Crowned spring 塔形弹簧 0.80
7 YT24-1.07 Ratchet pawl 棘轮爪 1.20
8 Y20LY-1.08 Rifle nut 螺旋母 33.00
9 Y20LY-1.1 Piston 活塞 50.00
10 Y20LY-1.06 Setting pin 定位销 0.80
11 Y20LY-1.11 Cylinder 气缸 150.00
12 Y20LY-1.12 Guide sleeve 导向套 34.00
13 Y20LY-2.02 Rotational sleeve 转动套 55.00
14 Y20LY-2.03 Shank sleeve 钎尾套 16.00
15 Y20LY-2.01 Front head 机头 125.00
16 Y20LY-2.06 Yoke bolt 钎卡螺栓 5.50
17 Y20LY-2.07 Yoke 钎卡 15.50
18 Y20LY-2.05 Yoke spring 钎卡弹簧 1.50
19 GB889-86 M14  I Hex.locking nut I型非金属嵌件六角锁紧螺母 1.70
20 GB6172-86 M10  I Hex.thin nut 六角薄螺母 0.70
21 GB93-87 10 Spring Pad 标准型弹簧垫圈 0.50
22 YT24-3.21 Control handle 操纵手把 5.50
23 YT24-3.22 Fixing pin 紧固销 5.80
24 YT24-3.31 handle bolt 把手螺栓 13.00
25 Y24-3.29 Rubber handle 胶皮手把 3.30
26 GB848-85 16 Pad 垫圈 0.60
27 GB889-86 M16 I Hex.locking nut I型非金属嵌件六角锁紧螺母 1.10
28 Y20LY-3.23 Water valve 注水阀体 9.20
29 YT25-3.35 Pad 垫 1.70
30 YT25-3.09 Water tube sleeve 水针套 0.50
31 Y20LY-3.04 Water tube 水针 1.10
32 FS13-11 Rubber pad 胶垫 0.60
33 Y20LY-3.08 Back head 柄体 115.00
34 Y20LY-3.07 Big seal sleeve 大密封套 0.60
35 GB6175-86 M14 I Hex.locking nut I型六角锁紧螺母 0.80
36 GB93-87 M14 Spring pad 垫圈 0.50
37 Y20LY-3.02 Side bolt 长螺杆 6.00
38 Y20LY-3.27 Left Handle 左手把 11.00
39 YT25-3.20 Spring 弹簧 0.50
40 YT25-3.21 Setting pin 定位销 0.80
41 Y20LY-3.03 Control valve 操纵阀 18.00
42 GB1235-79 28*3.1 O- rubber seal ring O型密封圈 0.50
43 YT24-3.30 Seal ring 密封圈 0.50
44 YT24-3.19 Steel retaining ring 钢丝卡环 0.70
45 GB1235-76 22×2.4 O- rubber seal ring O型密封圈 0.40
46 YT24-3.24 Steel retaining ring 钢丝卡环 0.70
47 Y20LY-3.11 Air connection tube 气管弯 14.00
48 Y20LY-3.18 Water connection tube 水管弯 6.50
49 19-16 Pipe connector 管接套 10.50
50 19-01 Wing nut 蝶型螺母
51 19-04 Conical pipe connector 锥形胶管接套
52 ZBJ15001 ф38 Hoop ф38喉箍 1.30
53 YO18-3.08 Rubber handle 胶把 4.50
54 Y20LY-3.27 Right handle 右手把 6.50
