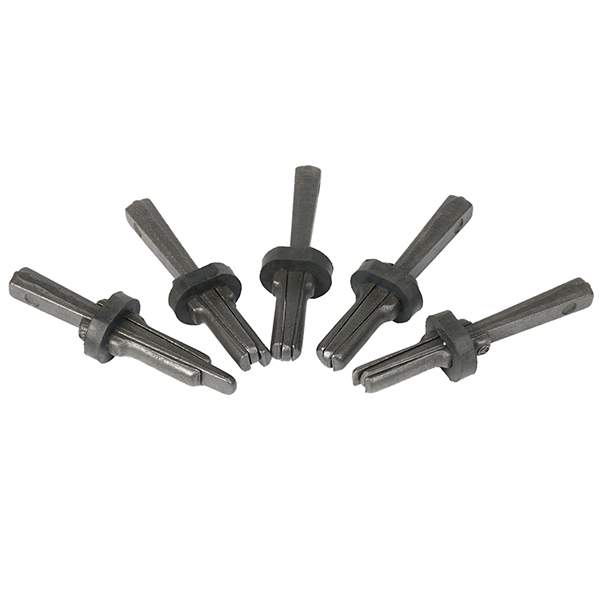

Shims and wedges with rubber clamp for granite splitting

Plug and feather, also known as plugs and wedges, feather and wedges, wedges and shims, pins and feathers and feather and tare, refers to a technique and a three-piece tool set used to split stone.

This product is currently out of stock and unavailable.

SKU: N/A Category: Tags:

Wedges and shims, it’s also called Hand Splitter, Plug and Feathers, Feather Pair and Wedges. Used for stone block splitting and cutting.

Shims and wedges with rubber clamp for granite splitting-ProDrill

Rock drilling tools manufacturer ProDrill: Shim and wedges are a kind of manual tools that uses manpower to impact the metal wedge into holes on stone, thereby split stone. It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.



Shims and Wedges is a very effective and labor-saving tool, good for environment, no dust and sound, especially for mines applying small size of quarrying stone blocks. Suitable for quarrying layered ores which are either horizontal or gently inclined, have layer depth around 1.5m. More sizes and shapes for your choice.

Shims and wedges with rubber clamp for granite splitting-ProDrill



We can design the length and hole size and shape as customers’ requirements

Standard size available as follows:

Shims & Wedges (Feather Pair & Wedges)
Hole Diameter(mm) Length(mm) Net Weight(kg)
14 (1/2’’) 125 (5’’) 0.17
16 (5/8’’) 125 (5’’) 0.19
20 (3/4’’) 190 (7 1/2’’) 0.5
24 (15/16’’) 190 (7 1/2’’)` 0.6
32 (1 1/4’’) 280 (11’’) 1.5
34 (1 1/4’’) 290 (11 1/2’’) 1.8
38 (1 1/2’’) 320 (12 5/8’’) 2.1

Diameter

14, 16, 18, ,22, ,24, ,32, ,34, ,36, 38
