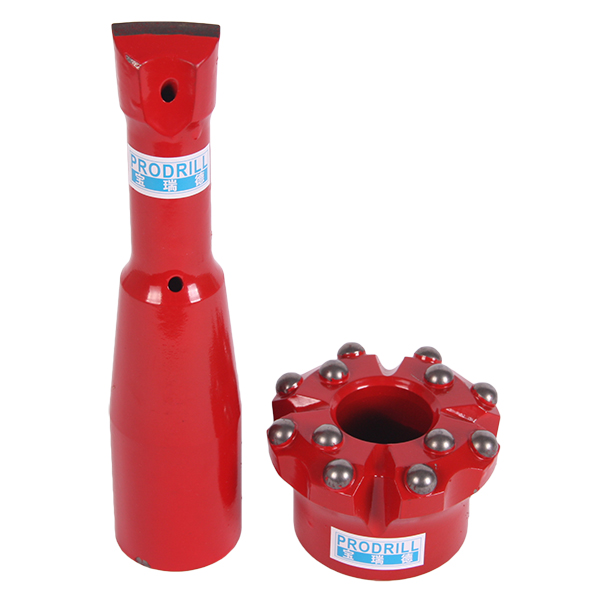

Reaming bit with pilot adapter R32-40mm-102mm

Rock drilling tools manufacturer ProDrill’s rock drill bits: Reaming tools made from high alloy steel and tungsten carbide as same grade as internationally well-known brand. Apply “hot (thermal) -insertion” processing procedure to insert the buttons as same as internationally well-known brand.

Pilot adapter,  Reamer ring.

A reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes pilot adapter a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge.

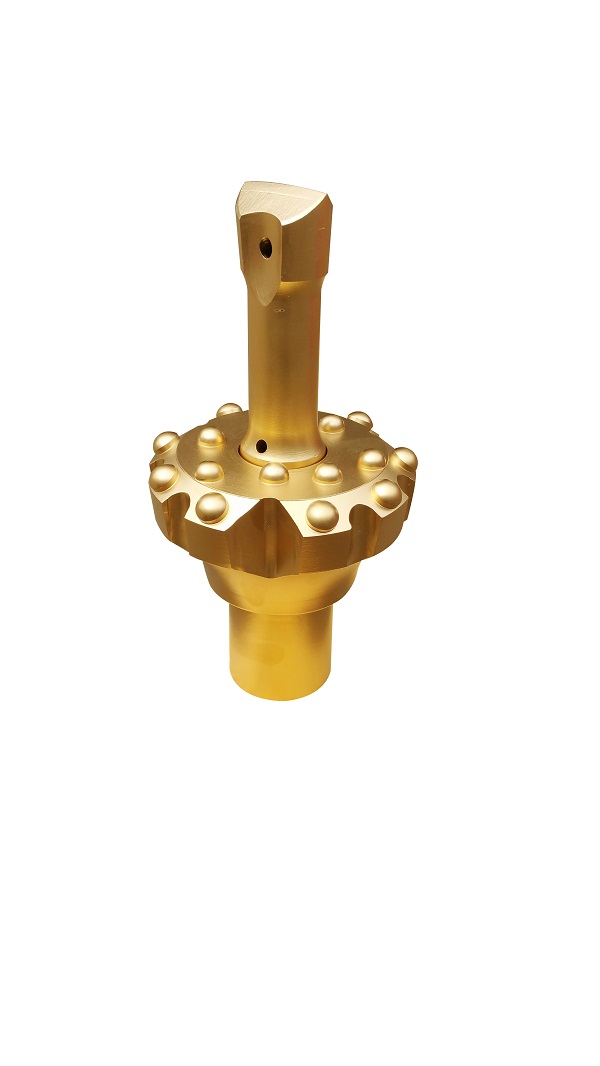

Assembly

Reaming ring of reaming tools, a second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.

For PDF file, please click:ReamingToolsforBenchDrillingLongHoleDrillingUndergroundCatalogue
