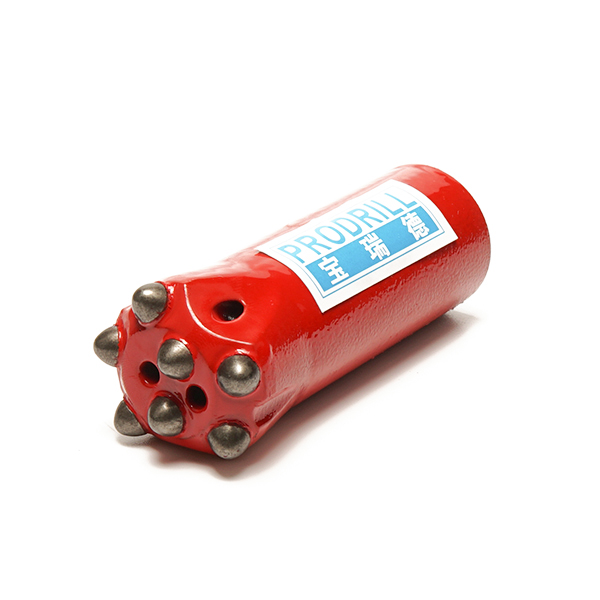

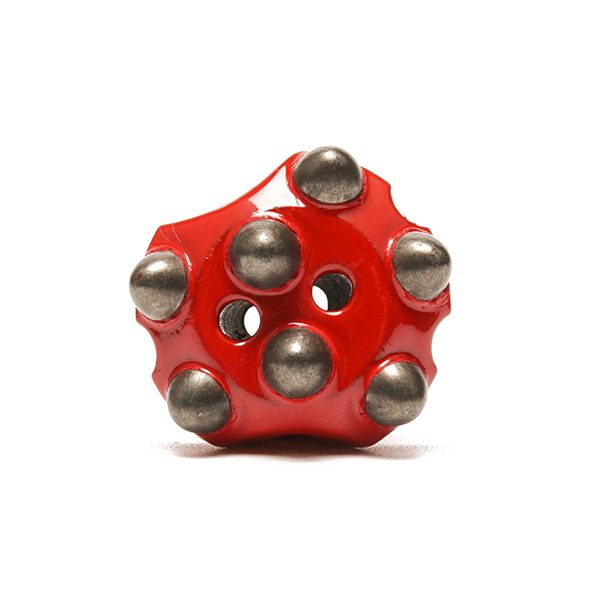

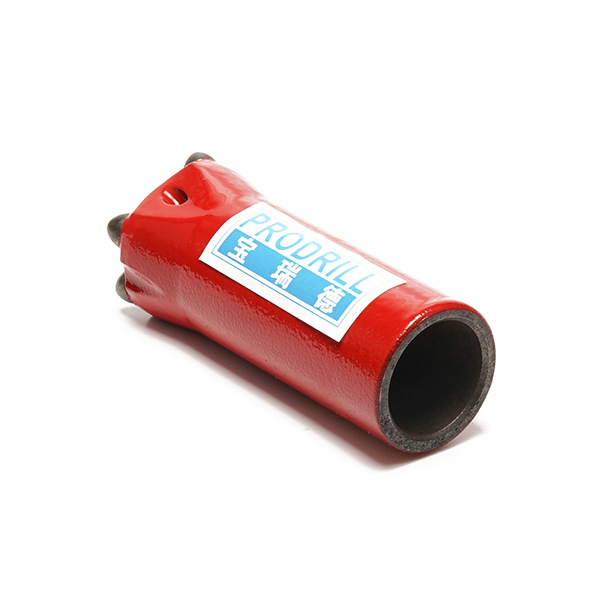

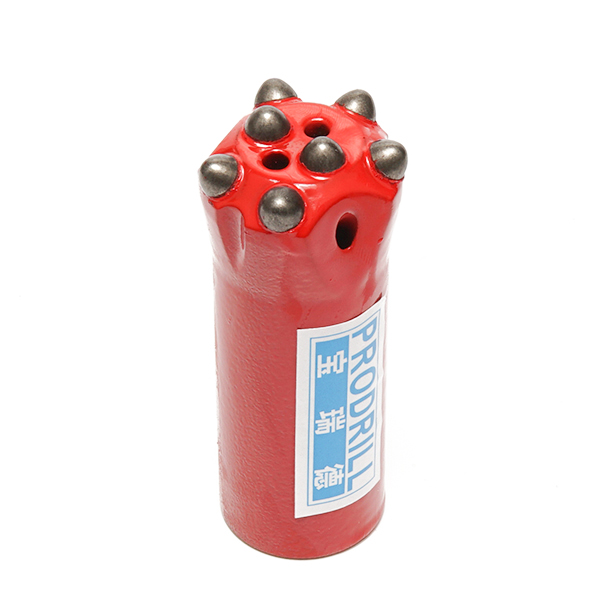

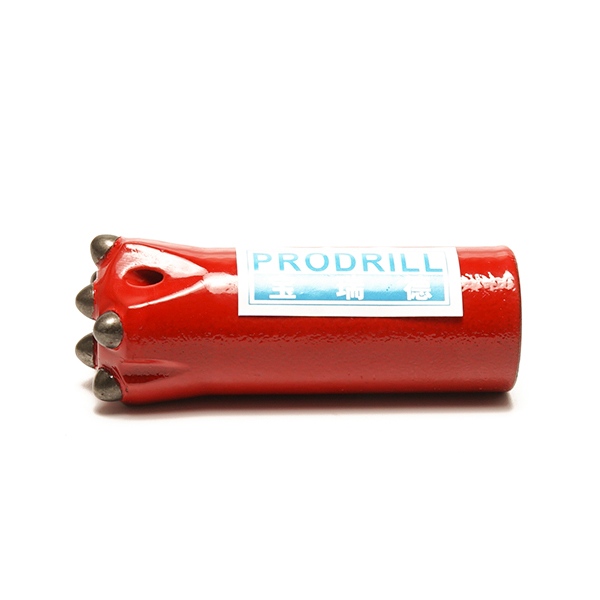

Q7-32-722-80 Tapered Button Bit

  • Diameter: 32mm
  • Length: 80mm
  • Carbide Dimension: 7mmx7
  • Carbide Design of Tapered Buttons: Parabolic(Semi-Ballistic)
  • Water Holes: 2 on front, 1 on side.
  • Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory,Offers industry-leading strength and penetration rates for more productivity.Excellent straightness and hole clean quality,Get max.drilling performance.
Category: Tags:

Rock Drilling Tools ProDrill, Taper button bit as small hole rock drill bits are different with thread button bit as long hole bit to use taper match with jack hammer bit with rod to be used for air leg or hand held jack hammer driller in quarrying, and mining.

Q7-32-722-80 Tapered Button Bit-ProDrill

Q7-32-722-80 Tapered Button Bit-ProDrill

Q7-32-722-80 Tapered Button Bit-ProDrill

Q7-32-722-80 Tapered Button Bit-ProDrill

Tapered Drill Bits Description :
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter: 32mm,34mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)Material︰Alloy Steel Bar 45CrNiMoVA, Tungsten Carbide Tips YK05 or T6.
(5)Button Shape︰ Ballistic Face Type︰ Flat Face; Bit Body︰Standard
(6)Qty of button: 5, 7, 8 pcs
(7)main market: India, Saudi Arabia, Chile, South Africa, and other stone countries

Q7-32-722-80 Tapered Button Bit-ProDrill









Q7-32-722-80 Tapered Button Bit-ProDrill
