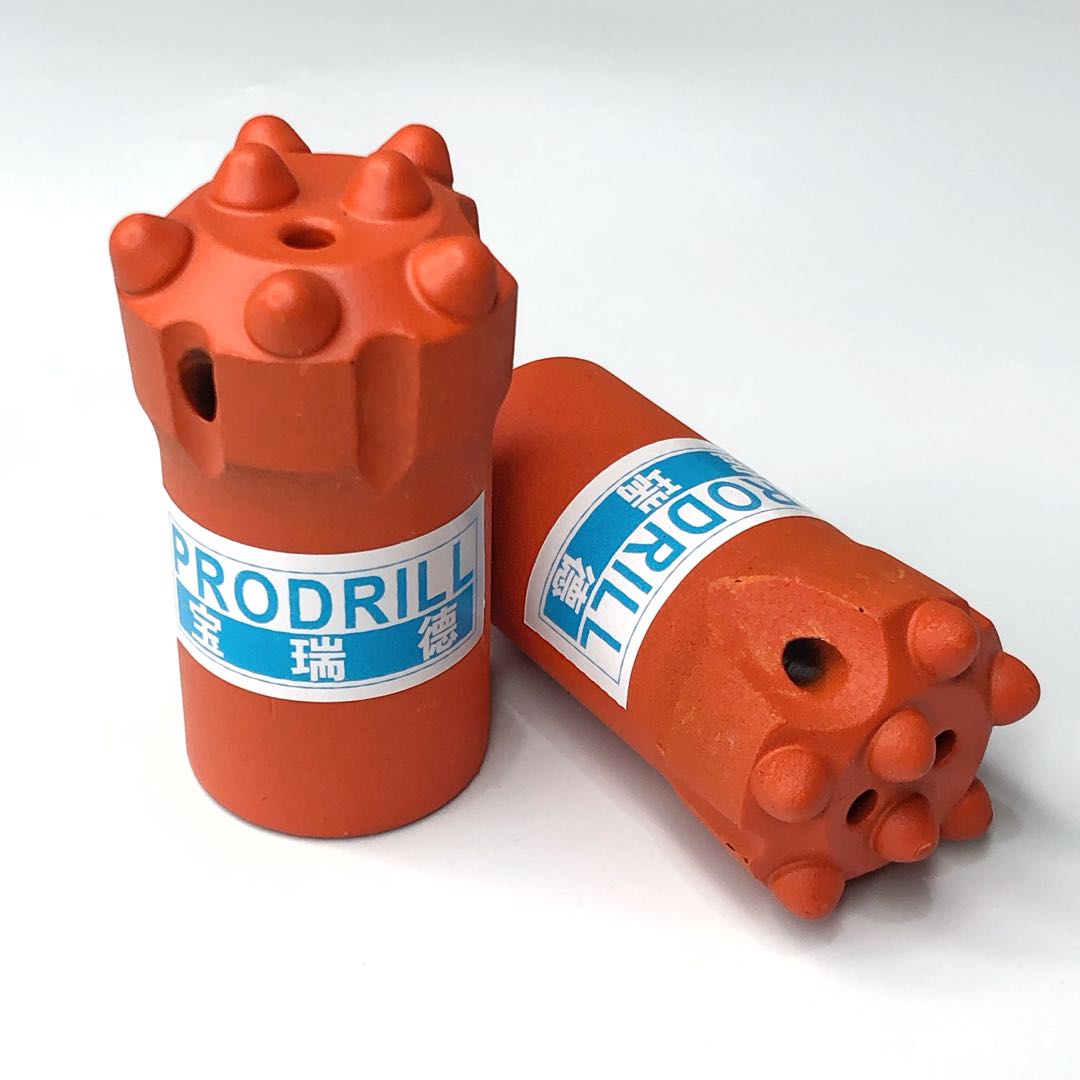

Q7-32-722-65 Taper button bit
Prodrill taper button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying,and mining. to match YT24, YT28, YT29a air pusher rock drills. such as Peru, Chile, Colombia etc. most of main size as follow :
Q7-32-722-65
- Diameter: 32mm
- Length: 65mm
- Carbide Dimension: 7mmx7
- Carbide Design of Tapered Buttons: Parabolic(Semi-Ballistic)
- Water Holes: 2 on front, 1 on side.
Carbide code : T6 grade ( world No.1 ) Designed for underground mining to match YT24, YT28, YT29a air pusher rock drills in Peru, Chile, Colombia.
Related products
-
Q7-35 Tapered Button Bits For Underground Mining Peru，Chlie
Rock drilling tools factory ProDrill manufactures rock drill bits: Tapered bits for underground and dimensional stone driling. Our tapered button bits have been tried and tested […]
-
Q8-48-1222-65 Tapered Button Bit
- Code No.: Q8-34-722-65
- Diameter: 34mm
- Length: 65mm
- Tapered Degree: 7°
- Carbide Dimension: 7mm*8
- Carbide Design: Semi-Ballistic
- Water Holes: 2 on front, 1 on side
- Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory,Offers industry-leading strength and penetration rates for more productivity.Excellent straightness and hole clean quality,Get max.drilling performance.
-
Y2-32-619-67 Tapered Chisel Bit
- Code No.: Y2-32-619-67
- Diameter: 32mm
- Length: 67mm
- Tapered Degree: 6°
- Carbide Dimension: 12mm*8mm
- Water Holes: 2 on side
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.
