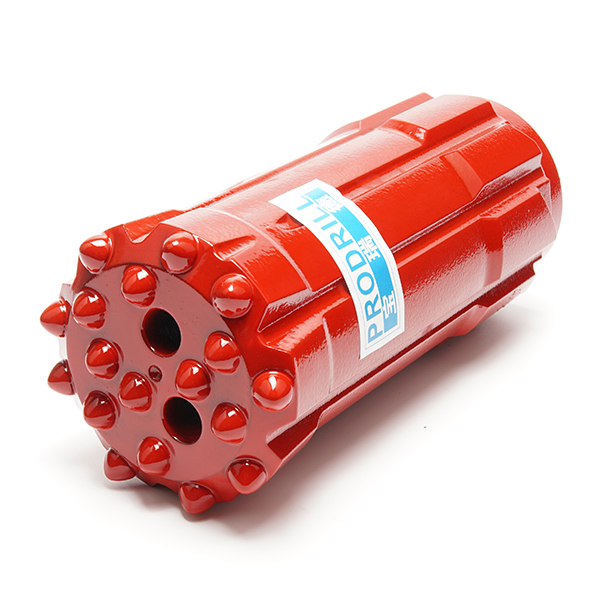

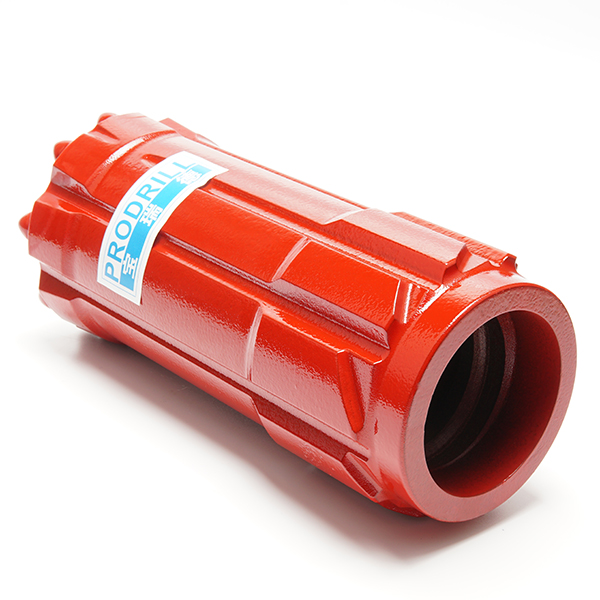

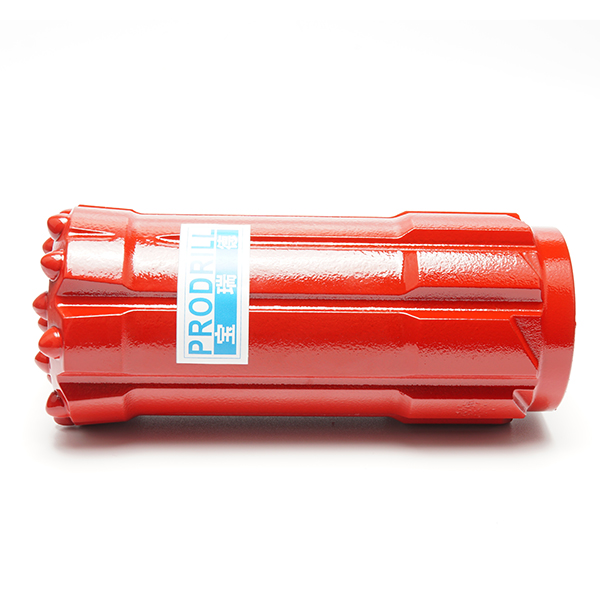

Q18-93-GT60-RC-Threaded Button Bit for Sandvik drill rig-DP1500i
- Code No.:Q18-93-GT60-RC
- Thread: GT60
- Diameter: 93mm
- Gauge Buttons: 9*14mm
- Front Buttons: 9*14mm
- Skirt Design: Retrac
- Carbide Design: Dome
- Face Design: Uniface
Rock drilling tools manufacturer ProDrill offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching and long hole drilling underground
GT60 Threaded Button Bit
Diameter: 89mm, 93mm, 102mm, 115mm, 127mm
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Uniface GT60 Threaded Drill Bit
Carbide Design: Dome, ballistic, semi-ballistic/parabolic
Retrac body Threaded Drill BitGT60 Threaded Button BitGT60 threaded button bitGT60 Thread Retrac Button Bit
Used in bench drilling, underground long hole drilling to match extension drill rod, heavy duty top hammer.
GT60 Threaded Button Bit
20 Semi-ballistic carbide inserts GT60 threaded dill bit with flat face design, 115mm diameter with extension drill steel for bench drilling and underground long hole drilling.
PDFFor more details please watch PDF online: GT60 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
