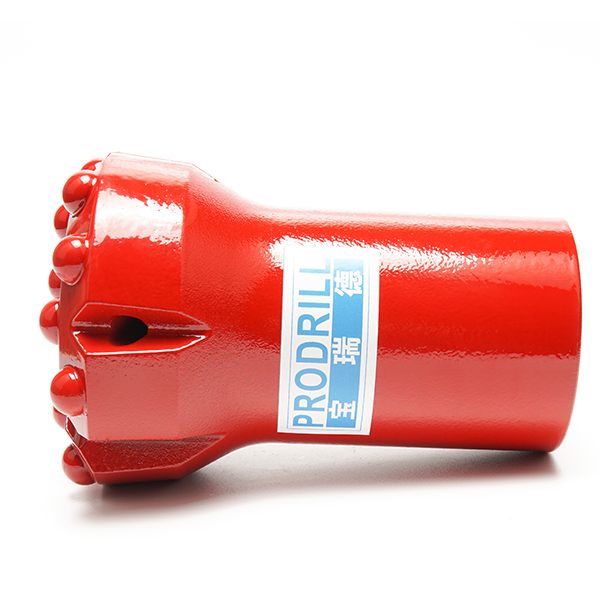

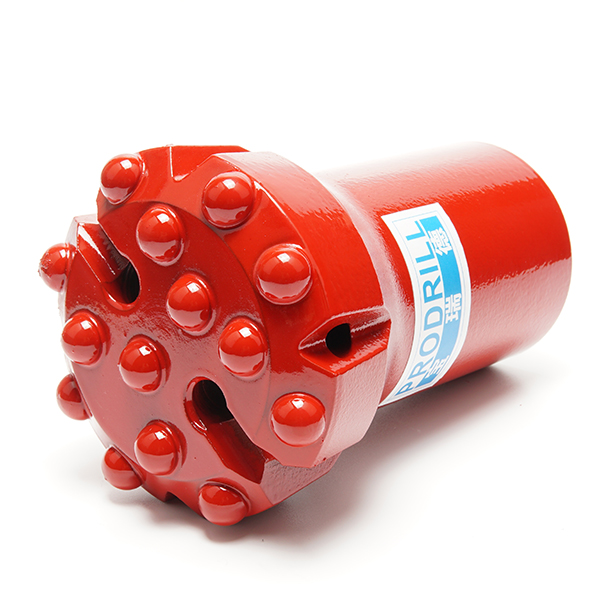

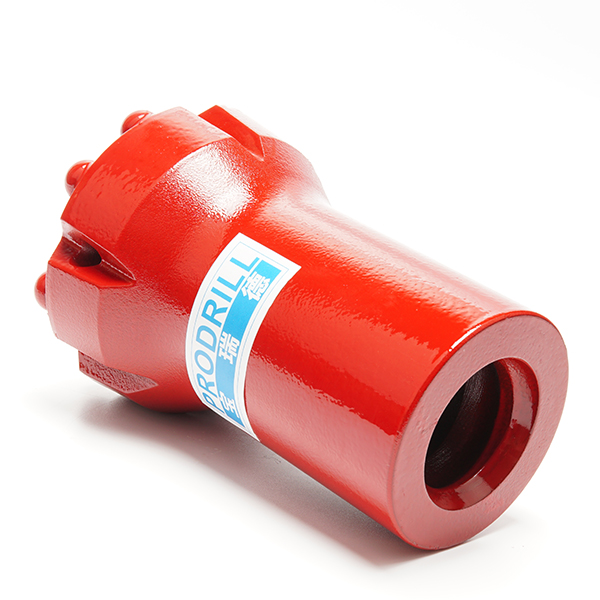

Q14-102-T45 Threaded Button Bit
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,
Offers industry-leading strength and penetration rates for more productivity，
Excellent straightness and hole clean quality,
Get max.drilling performance for rock drill with long life to save up fuel cost rate.
Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground
Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long-hole drilling to match extension drill rod, drifting drill steel heavy duty top hammer.
T45 Threaded Drill Bit with flat face design.

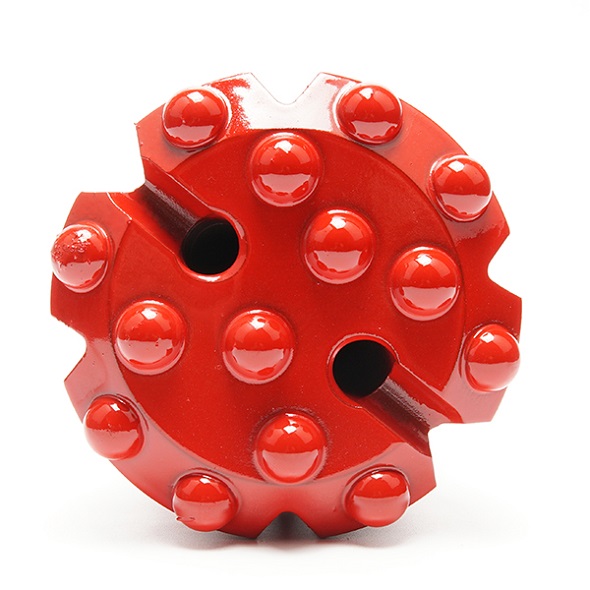

14 Dome Buttons, 102mm Diameter, T45 Thread with Flat face, Standard body Top Hammer Bit to match with
extension drill rods for bench drilling and underground long-hole drilling.
For more details please watch PDF online:
T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
Related products
-
Q7-38-R25 Threaded Button Bit
- Code No.: Q7-38-R25
- Thread Type: R25
- Diameter: 38mm
- Length: 90mm
- Gauge Buttons: 9mm*5
- Front Buttons: 7mm*2
- Carbide Design: Semi-ballistic
- Skirt Design: Standard
- Weight: 0.51kg
- Water Holes: 1 on front, 1 on side
-
Q7-38-1122-50 Tapered Button Bit
- Code No.: Q7-38-1122-50
- Diameter: 38mm
- Length: 50mm
- Tapered Degree: 11°
- Carbide Dimension: 8mm*7
- Carbide Design: Semi-Ballistic
- Water Holes: 2 on front, 5 on side
- Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory,Offers industry-leading strength and penetration rates for more productivity.Excellent straightness and hole clean quality,Get max.drilling performance.
-
Q13-89-T45 Uniface Threaded Button Bit
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity，Excellent straightness and hole clean quality, Get max.drilling performance for rock drill with long life to save up fuel cost rate.
