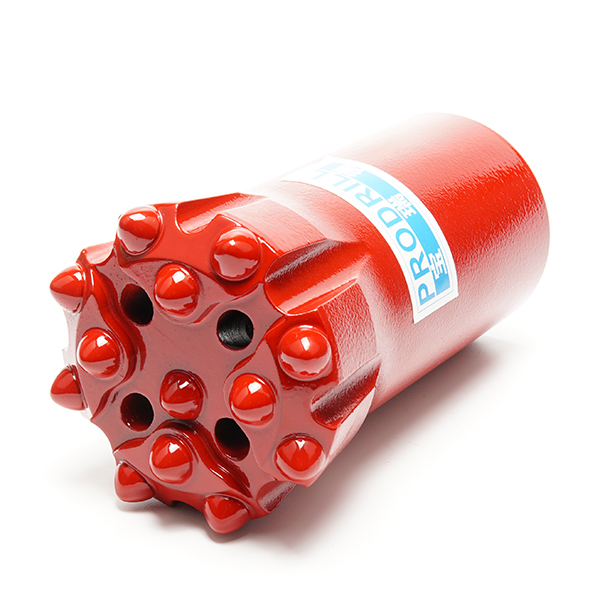

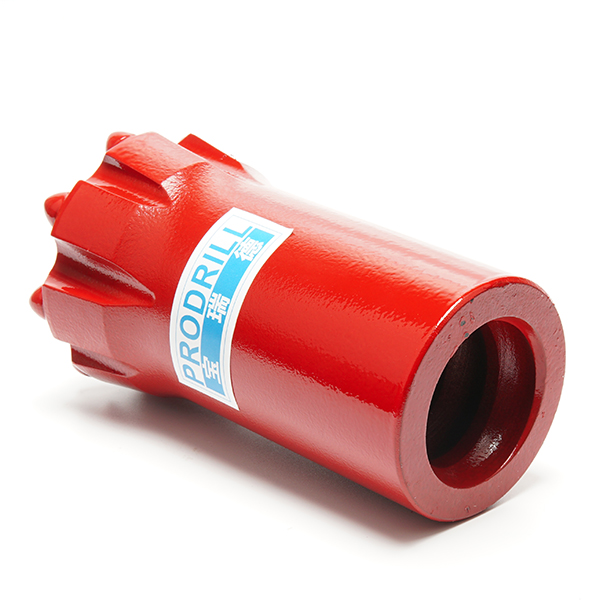

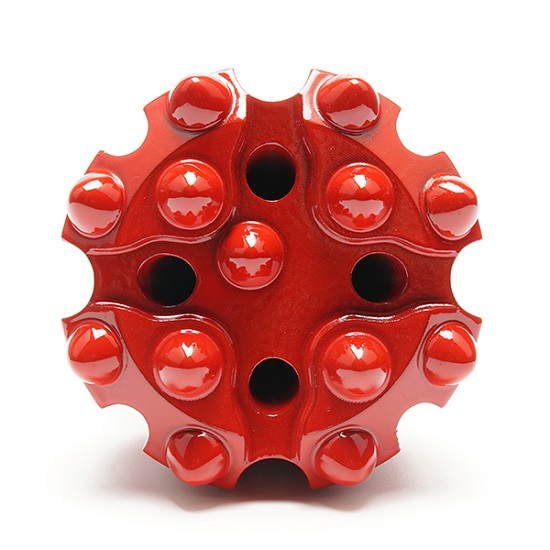

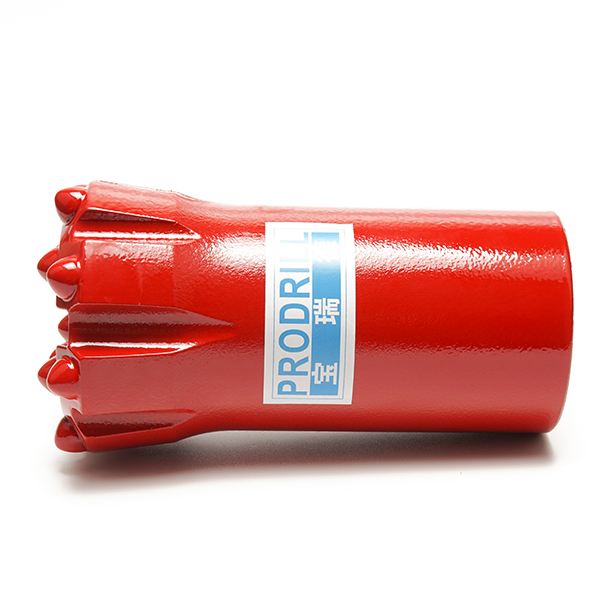

Q13-89-T45 Uniface Threaded Button Bit

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity，Excellent straightness and hole clean quality, Get max.drilling performance for rock drill with long life to save up fuel cost rate.

Category: Tags:

Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for
benching and long-hole drilling underground
Code No.: Q13-89-T45-UF
Thread: T45
Diameter: 89mm
Gauge Buttons: 8*13mm
Front Buttons: 5*13mm
Skirt Design: Standard
Face Design: Uniface
Carbide Design: Semi-Ballistic
Weight: 4.18KG

Q13-89-T45 Uniface Threaded Button Bit-ProDrill

Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide shape:  Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension drill rod, drifting drill steel heavy duty top hammer.

Q13-89-T45 Uniface Threaded Button Bit-ProDrill

T45 Threaded Drill Bit with uniface design.

Q13-89-T45 Uniface Threaded Button Bit-ProDrill Q13-89-T45 Uniface Threaded Button Bit-ProDrill Q13-89-T45 Uniface Threaded Button Bit-ProDrill

13 Semi-Ballistic Buttons, 89mm Diamter, T45 Thread with Uniface, Standard body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.

Q13-89-T45 Uniface Threaded Button Bit-ProDrill

Q13-89-T45 Uniface Threaded Button Bit-ProDrill

Sandvik Top hammer drill rig RANGER DX700 using ProDrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.

Q13-89-T45 Uniface Threaded Button Bit-ProDrill

For more details please watch PDF online:

T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
