Q13-89-T45 Uniface Threaded Button Bit
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity，Excellent straightness and hole clean quality, Get max.drilling performance for rock drill with long life to save up fuel cost rate.
Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground
Code No.: Q13-89-T45-UF
Thread: T45
Diameter: 89mm
Gauge Buttons: 8*12mm
Front Buttons: 5*11mm
Skirt Design: Retroc
Face Design: Uniface
Carbide Design: Conical
Weight: 4.18KG
Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide shape: Dome, ballistic, semi-ballistic, conical
Carbide: Tungsten YK-05
Used in bench drilling, underground long hole drilling to match extension drill rod, drifting drill steel heavy duty top hammer.

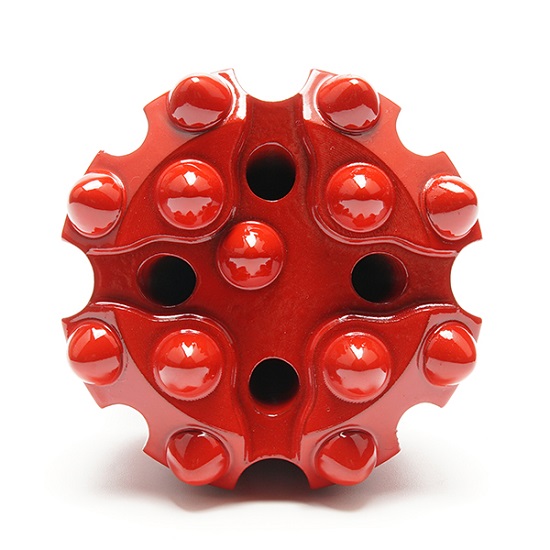

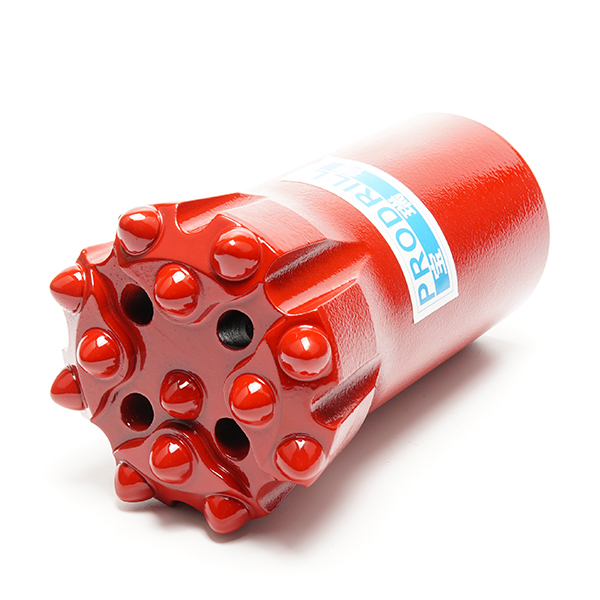

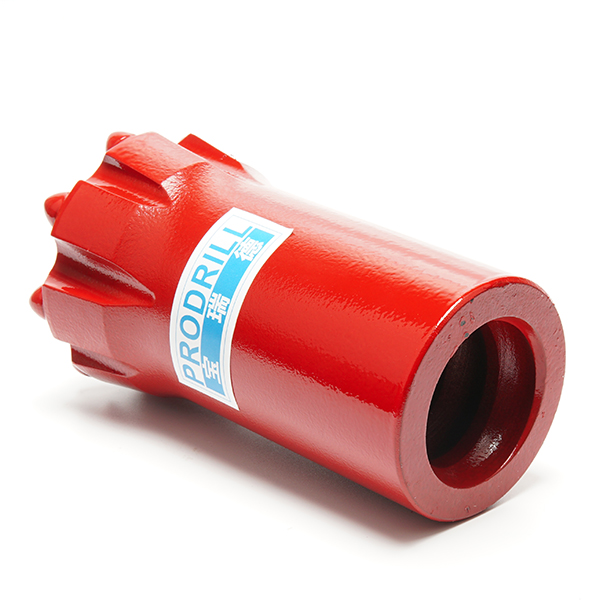

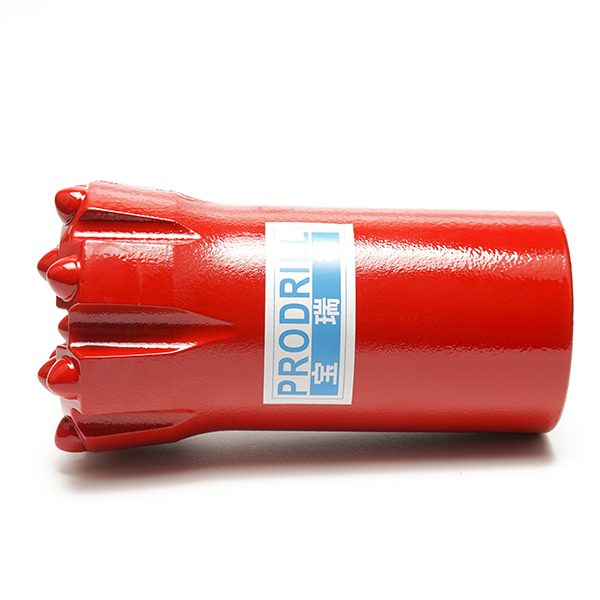

T45 Threaded Drill Bit with uniface design.
13 Conical Buttons, 89mm Diamter, T45 Thread with Uniface, Standard body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.
Sandvik Top hammer drill rig RANGER DX700 using ProDrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.
For more details please watch PDF online:
T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
