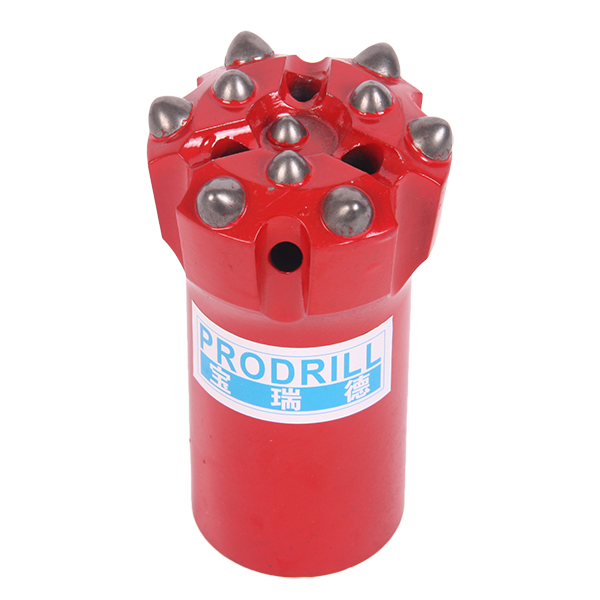

Q10-76-T38 Threaded Button Bit Drop Center
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up fuel cost rate.
T38 Threaded Button Bits from rock drilling tools manufacturer ProDrill, which is the most important size for benching and long-hole drilling underground.
Features as below
Diameter: 64mm 76mm, 89mm
Skirt body: retrac, and normal,
Face type: flat, uniface, drop center
Carbide design: Dome, ballistic
Used in bench drilling, underground long hole drilling
To match extension MF rod, MM rod heavy duty top hammer.
Code No.: Q10-76-T38-DC
Thread: T38
Diameter: 76mm
Gauge Buttons: 6*12.7mm
Front Buttons: 4*11mm
Skirt Design: Standard
Carbide Design: Semi-Ballistic
Face Design: Drop Center
Weight: 2.4KGS
Rock drill bits: 10 Semi-ballistic carbide inserts threaded drill bit with a drop center face and 76mm diameter, to match extension drill steels.
Video:
For more details please watch PDF online: T38DrillBitsforBenchDrillingLongHoleDrillingUndergroundCatalogue
