Diamond Multi Wires for Granite Block Cutting

Diamond wire is the latest and most interesting innovation in the field of diamond cutting tools. In constant growth, wire is used in quarrying, as well as in slabs cutting with single- or multi-wire machines, and in squaring and shaping natural stone (marble and granite).

Category: Tags:

Prodrill new product ProWire for stone cutting: Diamond Multi Wire is a newest diamond wire materials used by granite multi wire saw machine to saw granite slabs to replace traditional granite gang saw.

Brand Name: ProWire
Type Power: Tool Parts
Quality of Steel Cable: 100% German Made
Diameter of Beads: 6.2mm, 6.4mm, 7.3mm, 7.5mm
Beads/Meter: 36, 37
Fix Method: Plastic Coating
Diamond: Element Six
Machine: Diamond Wire Saw Machine
Loop: Endless Loop

Diamond Multi Wire is suitable for all kinds of granite slab cutting with following specialties:

High cutting efficiency, 10-15 times than granite gang saw machine,

Smooth cutting surface, get the even and smooth slab,

Always involve low power consume and less raw material waste,

Low noise and friendly surroundings,

Easy manipulation and with high yield, low cost, safety and environmental protection etc.

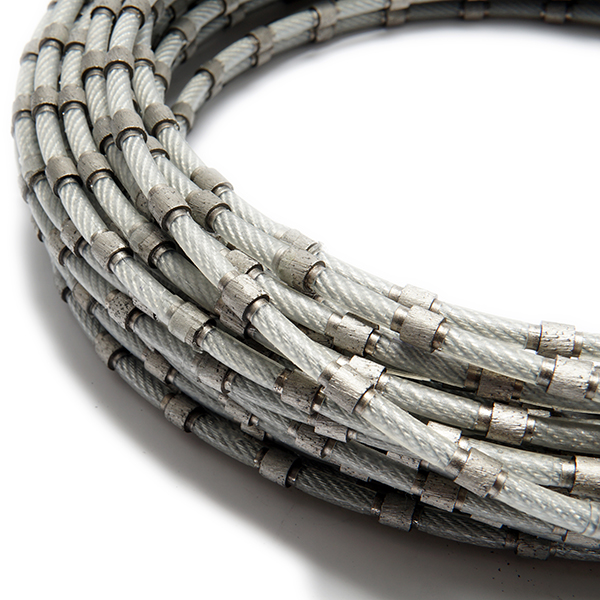

Diamond Multi Wires for Granite Block Cutting-ProDrill

Technical Features:

Suitable for multi wire saw with 5 to 60 wires as a group.

Injecting endless diamond wire is applied to lower wire broken off.

Strong cable with very little distortion effectively reduces mutual interference between the closed loop wire when cutting.

Wire pre-sharpened by machine to ensure easy starting on all kind of granite.

Used to the end of its life without the need for re-coating on it.

Perfect to match with SIMEC, Universo, Gaspari, Pellegrini and Bidese(Breton) multi wire saw machines.

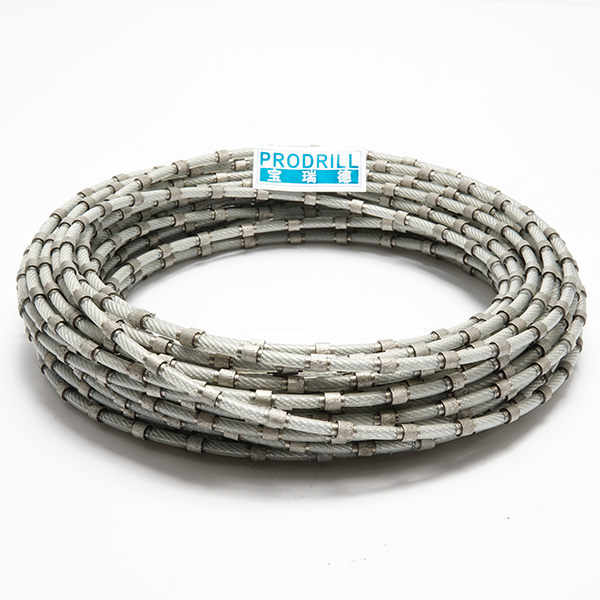

Diamond Multi Wires for Granite Block Cutting-ProDrill

Wire Specification:

Item NO. Bead Diameter (mm) Beads/Meter Application Coating
PW18 φ7.2 37 Granite Slabs High Strength Plastic
PW20 φ6.2 37 High Strength Plastic

Parameters:

Application Wire Speed(m/s) Cutting Speed(m2/h) Life(m2/h)
Soft Granite 28-32 0.7-1.3 (Pcs No.) 6-13
Medium Hard Granite 28-32 0.5-1.0 (Pcs No.) 4-8
Hard Granite 25-30  (Pcs No.) 2-6

Diamond Multi Wires for Granite Block Cutting-ProDrill

Bead Specification:

Bead Diameter(mm) Working Layer Height(mm) Support length(mm) Bead Type
φ7.2 H6.5，H7.0 10.5 Sintered
φ6.2 H6.5，H7.0 10 Sintered

Other specifications are available according to customer’s requirements.



Diamond Multi Wires for Granite Block Cutting-ProDrill

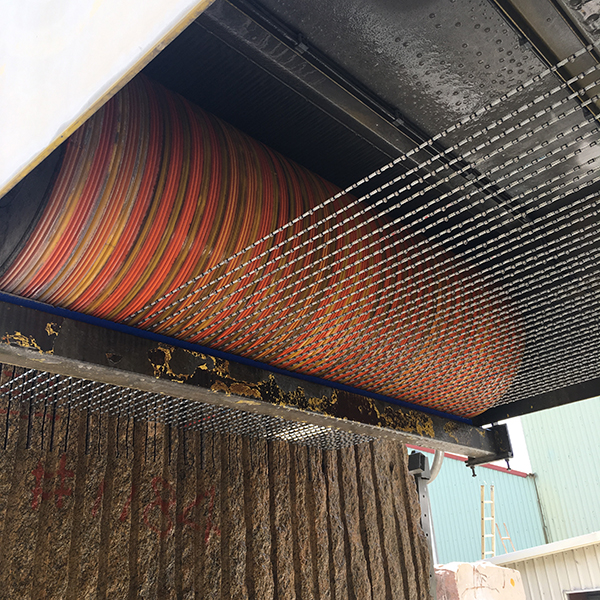

Productivity of Prodrill ProWire Diamond Multi Wire: Modern gang saw can produce 3000 to 4000 square meters of 2 cm thickness slabs, ProWire Diamond Multi Wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm.

Diamond Multi Wires for Granite Block Cutting-ProDrill

Diamond Multi Wires for Granite Block Cutting-ProDrill

ProWire Diamond Multi Wire most common specs:

1. φ7.3mm Beads, 24.5 LM Diamond Wire, 36 Beads per LM for Granite Multi Wire Saw Machine;

2. φ7.5mm Beads, 17.5 LM Diamond Wire, 37 Beads per LM for SIMEC Granite Multi Wire Saw Machine.
