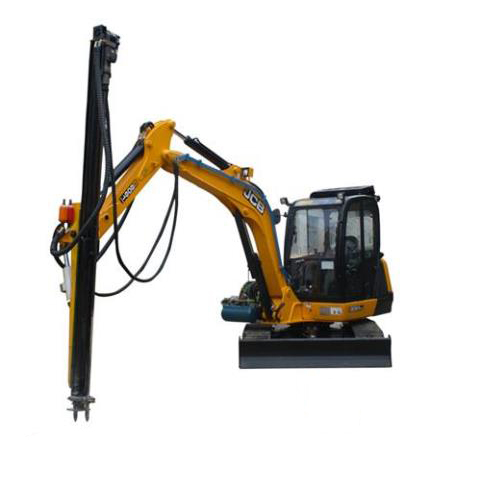

PD-Y28 Pneumatic Rock Drill Attachment for Mini 4 tons Excavator

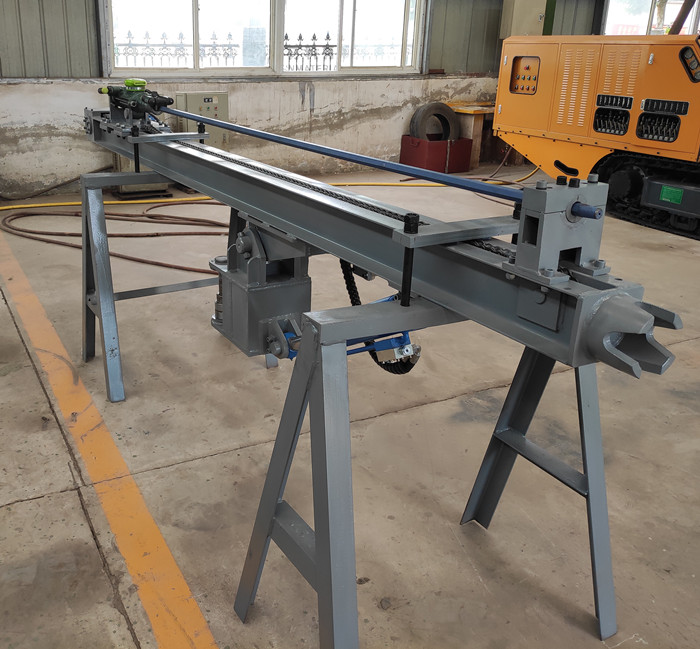

PD-Y28 Excavator Attached Pneumatic Rock Drill changes the tradition of manual hand-held pneumatic rock drills.Y28 is installed on a rail that can swing and move up and down, and then the rail is installed on the excavator with a quick-change connector. PD-Y28 drilling operation still uses air compressor to drive Y28 for drilling, but the drilling angle and the movement of the rock drill are derived from the hydraulic power of the excavator, which is controlled by the imported electromagnetic control valve sets. The operator uses electric control box knob controls the drilling operation in the cab, which is convenient, fast, safe and efficient. PD-Y28 improves the working environment, work efficiency and reduces labor intensity.
Application field: It is widely used in marble quarrying, tunnel boring, stonework, mining and various rock drilling operations. It is an indispensable operating tool in railway, highway, metallurgy, coal, water conservancy and hydropower construction and national defense stonework.
Product advantages Features:
- There is no need to purchase rock drilling rigs separately, which greatly saves costs.
- Utilizing the crawling and rotating advantages of the excavator, it can work in severe working conditions with a wide operating range.
- Unique oil circuit valve design, adjustable oil circuit distribution according to different working conditions to achieve the best rock drilling effect. The valve and electromagnetic reversing valve are all imported parts, which are precise, sturdy and durable.
- The function of the excavator can be restored when not in use, and the existing resources can be fully utilized.
- Low noise, low vibration, energy saving and high efficiency, low failure rate and high reliability;
- Centralized operating mechanism, flexible start-up, convenient use and maintenance;

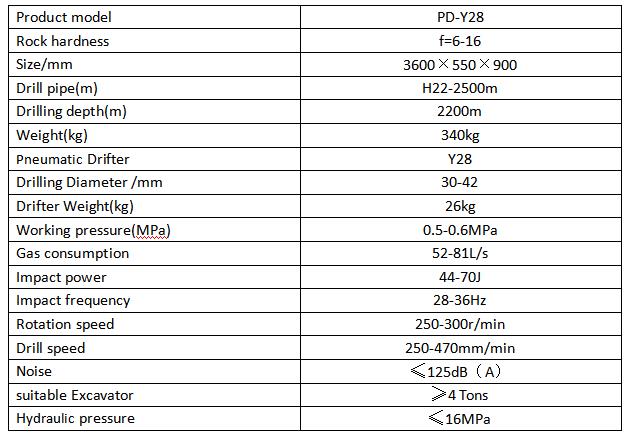

PD-Y28 Technical Parameter:

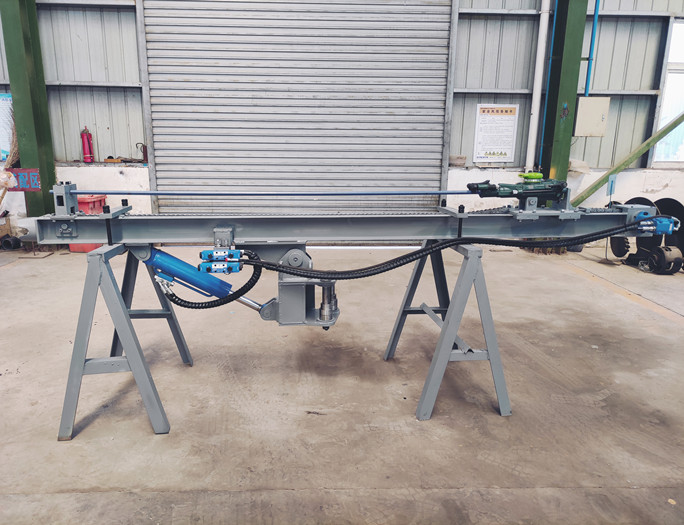

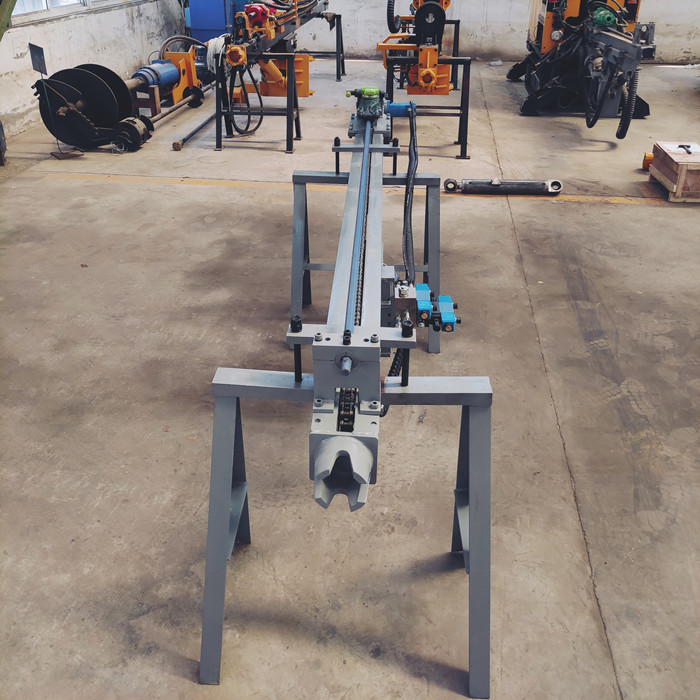

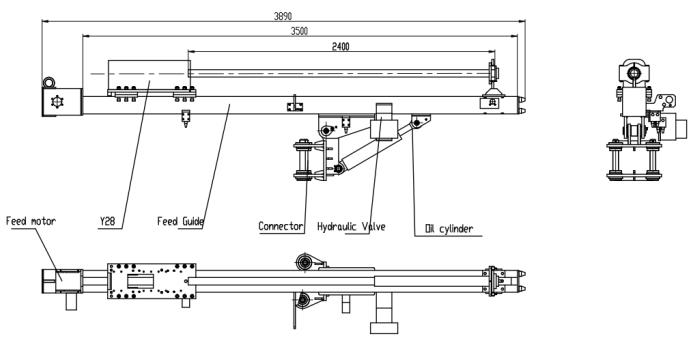

PD-Y28 Structure:
Main parts of PD-Y28:
1. front protection device

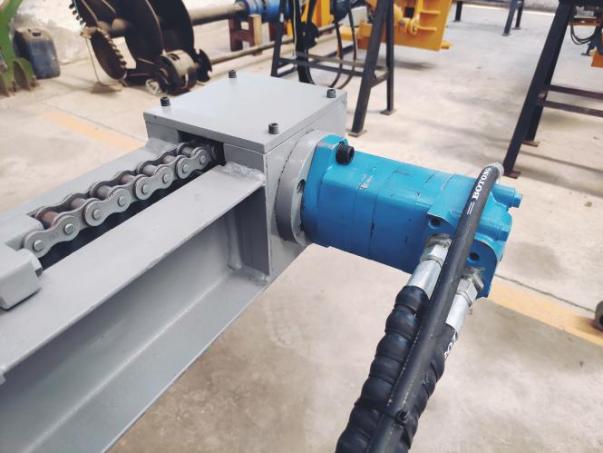

2. Feed motor:

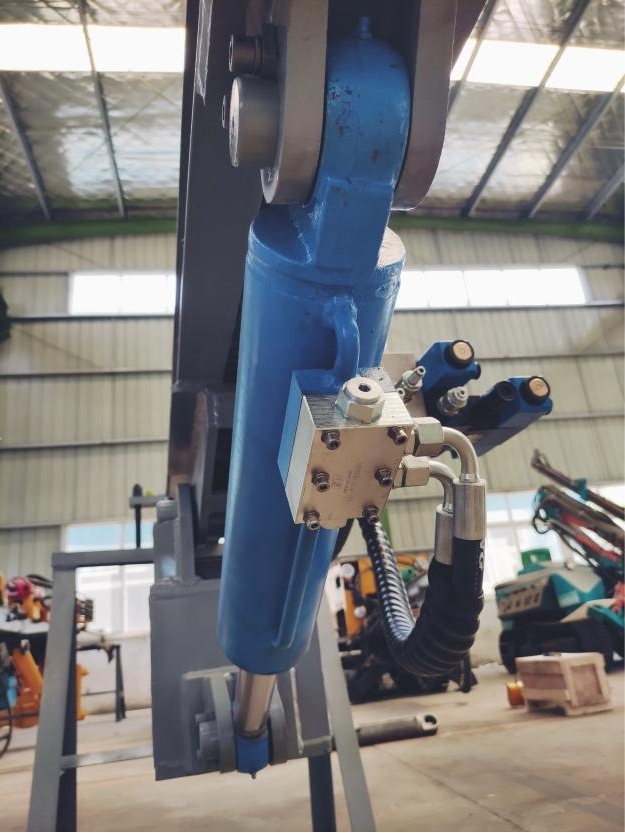

3. Swing cylinder

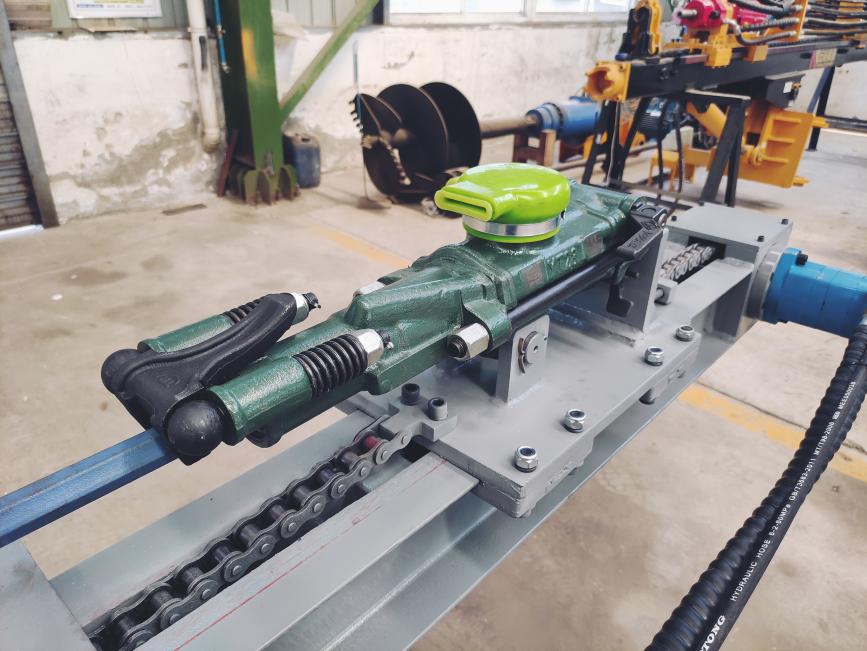

4. Pneumatic rock drill

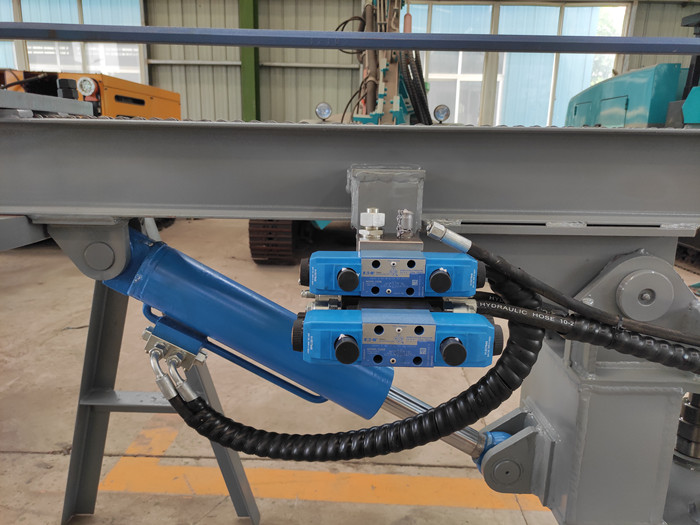

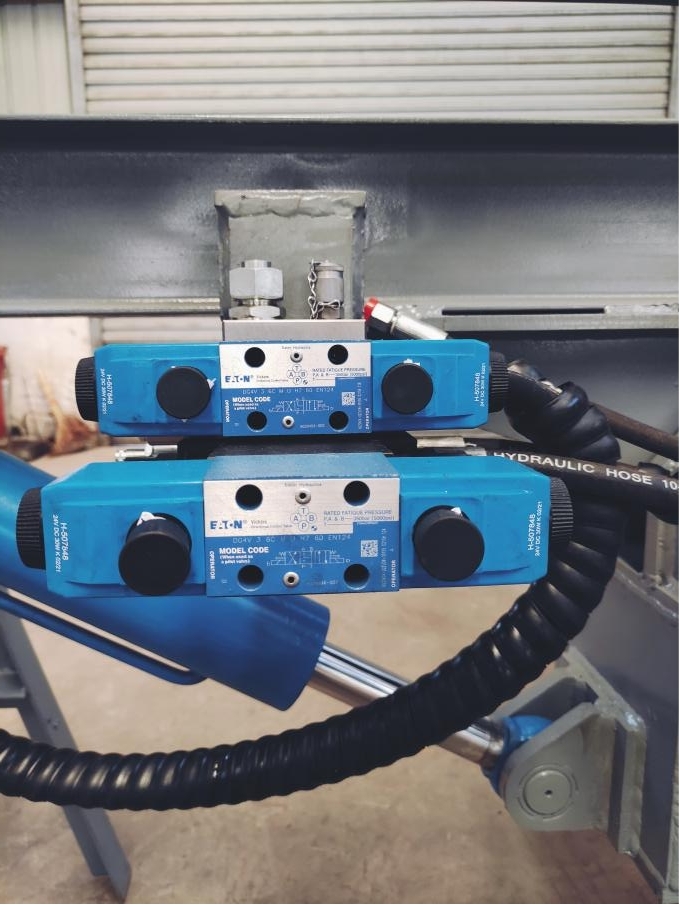

5.Control valve group
Video of PD-Y28:
Related products
-
PD45 Excavator mounted rock drilling attachments
- PD45 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
- The rate of the Pump can reach 200L/min, drilling diameter 45-64mm, 3m depth per time drilling.
- Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock.
- Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.
- It can replace traditional air drill and the air pick, have the advantages of high adaptability, Anti-jamming design, dust collect system, can punch over-sized hole.
-
Excavator Drill Attchment Drill HC20
- Compared with hydraulic drilling platform, the drilling function is similar and cost-effective.
- The drilling speed of pure rock drilling for hydraulic drilling machine is three times faster than that of the same magnitude pneumatic drill.
- Low energy consumption, about 1/3-1/4 of the same magnitude pneumatic drill.
- The long service life of the drilling machine for the hydraulic drill and the less consumption of the drill parts, and the low cost of drilling operation.
- The hydraulic drill can adjust the impact energy according to the rock condition to obtain the best drilling effect.
-

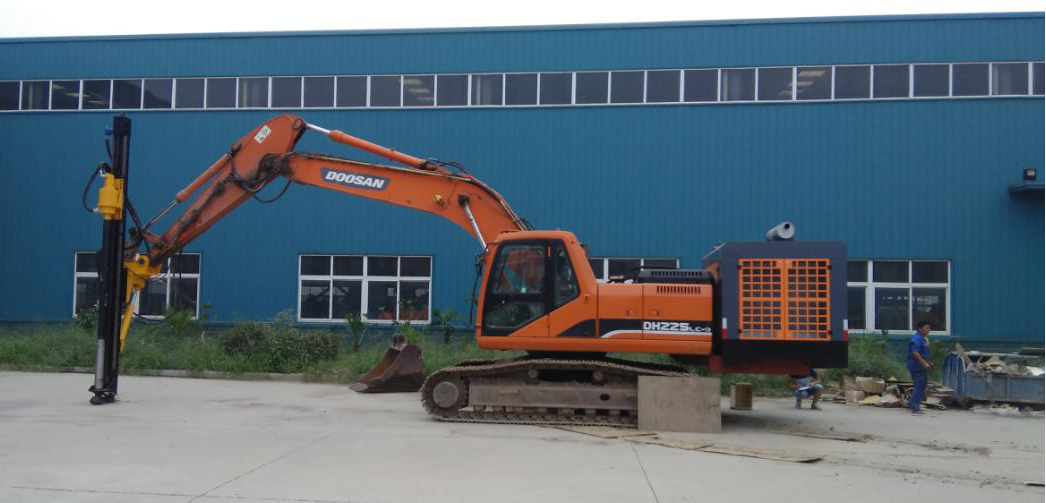

PD-150 DTH Excavators Drill Attachment(DTH excavator drill rigs)
