PD-150 DTH Excavators Drill Attachment(DTH excavator drill rigs)
High-end configuration: Imported hydraulic valve block.
All the operations are controlled by the lectrical-controlled appliance. Safe and comfortable for handlers working in the cab.
Diesel-moving screw compressor mounted in the cab at the rear counterweight, independent drive, strong wind pressure, air volume,
without digging machine itself affect the system, slag better.
This machine has low consumption and high efficiency. flexible movement, strong climbing, wide operation , good working,.
PD-150 Rock Drill Excavators Attachments (DTH)
- Weights/kg 1500:
- Size/m 6.0*2.0*1.5:
- Maximum operating pressure/MPa 21:
- Hole Range/mm 110-155:
- Rod Length/mm Φ76-3000:
- DTH hammer 45A/55A:
- Drilling Depth/m ≤30:
- Rotation Torque/N.m 3000:
- Rotation Speed/rpm 40-60:
- Model KSZJ-15/14.5:
- Free Air Delivery/m³/min 15:
- Working Pressure/bar 14.5:
- Diesel engine power/kW 131:
- Size/mm 3000*1520*1800:
- Weights/kg 2500:
- Adapter Excavator ≥15t:
1.Main features
l High-end configuration: Imported hydraulic valve block.
l All the operations are controlled by the electrical-controlled appliance, and it is safe and comfortable for handlers working in the cab.
l There is a Diesel-moving screw compressor mounted in the cab at the rear counterweight, independent drive, strong wind pressure, air volume, without digging machine itself affect the system, slag better.
2. Main Technical Parameters
| PD-150 DTH Excavators Attachments | ||
| Drilling Rig | Weights/kg | 1400 |
| Size/m | 6.0*2.0*1.5 | |
| Maximun operating pressure/Mpa | 21 | |
| Bit、 Rod | Hole Range/mm | 110-155 |
| Rod Length/mm | Φ76-3000 | |
| DTH hammer | 35A/45A/55A | |
| Drilling Depth/m | ≤20 | |
| ROTARY HEADS | Rotation Torque/N.m | 3000 |
| Rotation Speed/rpm | 40-60 | |
| Air Compressor | Model | KSZJ-15/14.5 |
| Free Air Delivery/m³/min | 15 | |
| Working Pressure/bar | 14.5 | |
| Diesel engine power/HP | 190 | |
| Size/mm | 3000*1520*1800 | |
| Weights/kg | 2500 | |
| Adapter Excavator | ≥15t | |

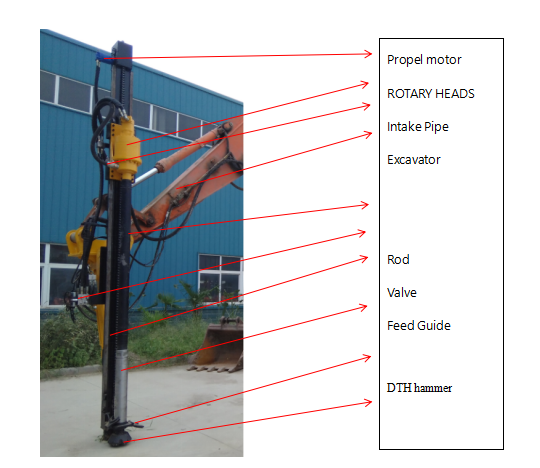

2. Equipment Composition

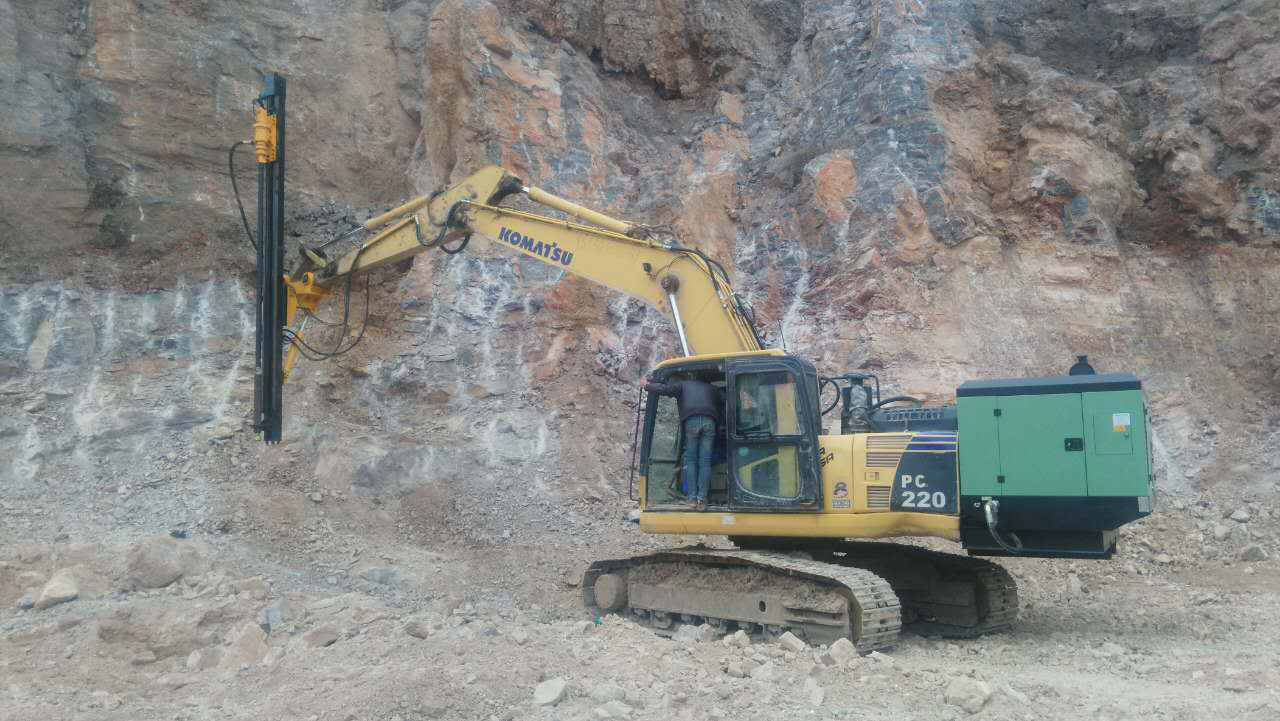

4.Application
Related products
-

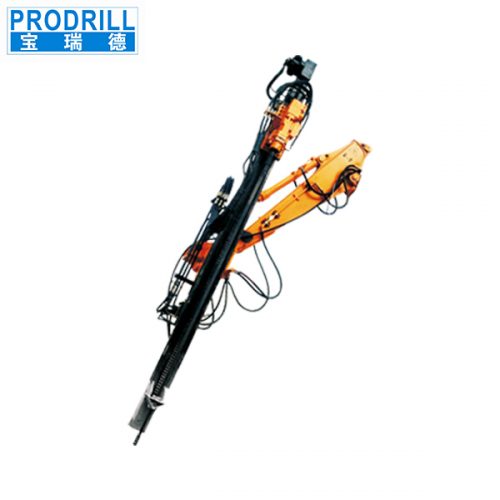

PD-90B EXCAVATOR MOUNTED DRILLING ATTACHMENT
1)PD-90B Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
2）The rate of the Pump can reach 200L/min, drilling diameter 38-115mm, 3m depth per time drilling.
3）Drilling speed: 1 Meter/Min for hard rock, 1.2 Meter/Min can drill 1m depth for soft rock.
4）Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.
5）Drilling control system from Sandvik together with the mechanical rod changer. Anti-jamming design, high efficient, and more reliable ,perfect for quarry and surface mining
-

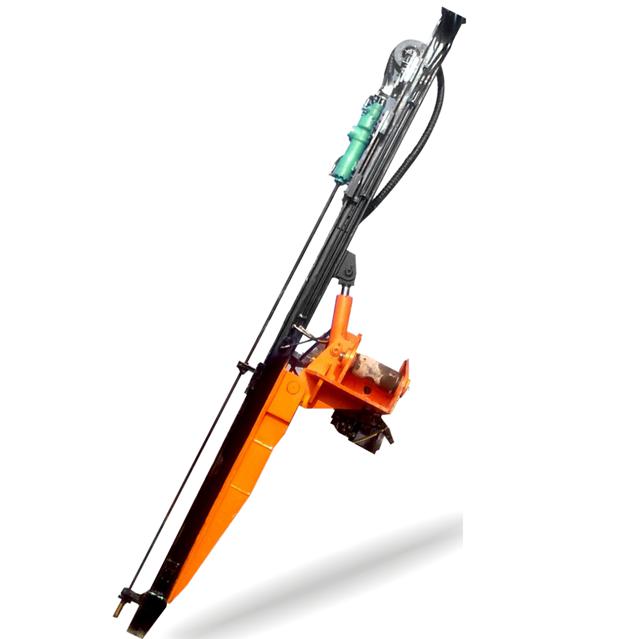

PD-90 EXCAVATOR MOUNTED ROCK DRILL
