HC109 Shank Т38 L 460mm

ProDrill Shank Adapters cover world main drill rigs brands and drifter as follows : – Atlas Copco (COP1238, COP1840, COP1638, COP1838, COP2150, COP2550, COP2160, COP2560)
– Furukawa (HD609, HD709, HD612, HD712)
– Sandvik (HL500, HL600, HL700, HL800, HL1000, HL1500, HLX5)
– Ingersoll Rand (YH65, YH70, YH80, YH60, YH135)
– Montabert (HC109, HC158, HC120, HC150, HC80)

Rock drilling tools manufacturer Prodrill produces shank adapters for most models of current prevailing rock drill machines. All Prodrill shank adapters are carburized, CNC manufactured, and made from premium steel. Thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions. Moreover, all shanks could be produced with ether male or female threads if there is actually necessary.

HC109 T38-460 Shank Adapter for Montabert rock drill:

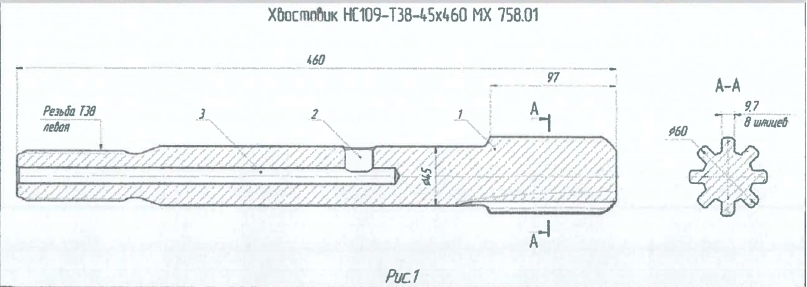

Shank is cylindrical detail with outer thread T38 from one side and grooves from another side. It is applied for transmitting rotation and strike on drilling pipe. Rotation on shank and drilling assembly is transmitted with grooves (1); blowing-off and washing is implemented through washing groove (2) and inner hole (3) of shank.

Approved drilling progress is 2300 bore holes per meter. During shank operation drilling progress should be not less than 2300 bore holes per meter,  at drilling in rock with hardness 8-10( third category ), hardness 15-18 (second category) on Protodyakonov scale.

It is applied on hydroperforator of underground drilling equipment.

Prodrill shank adapters are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Tam rock series drifters, Garden Diver series drifters etc.

Two flushing options of shank adapters: internal or external
— Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string

— External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank

— External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water

The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration,  Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.

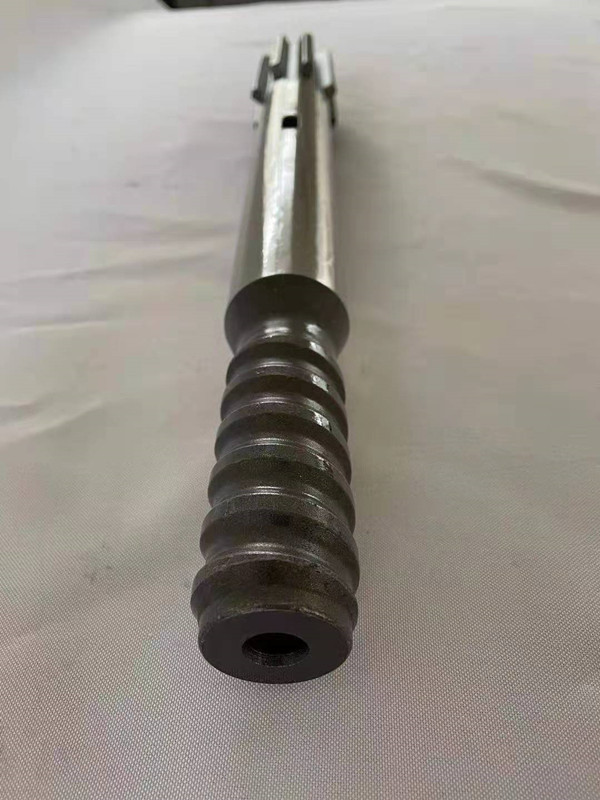

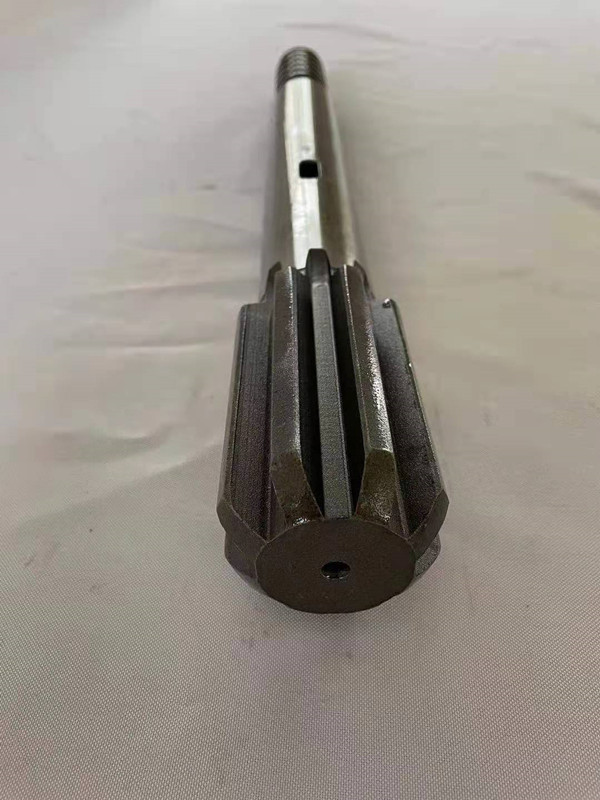

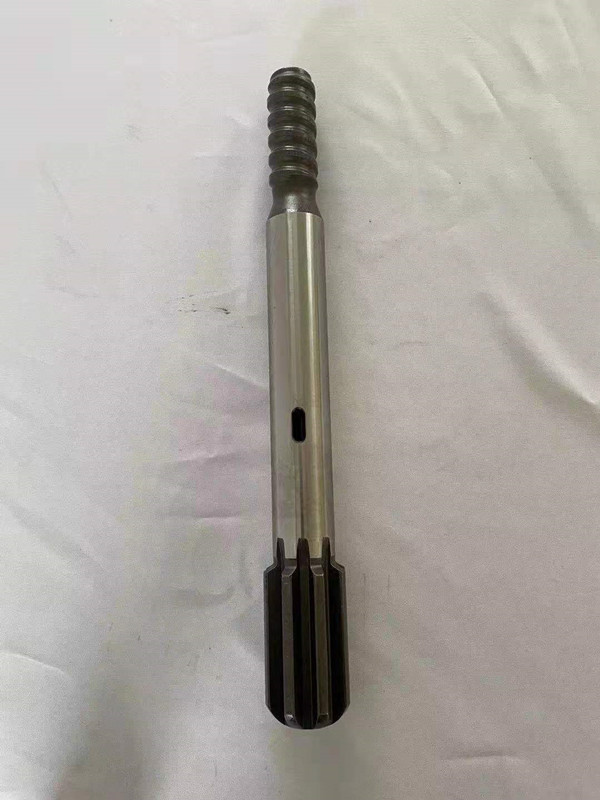

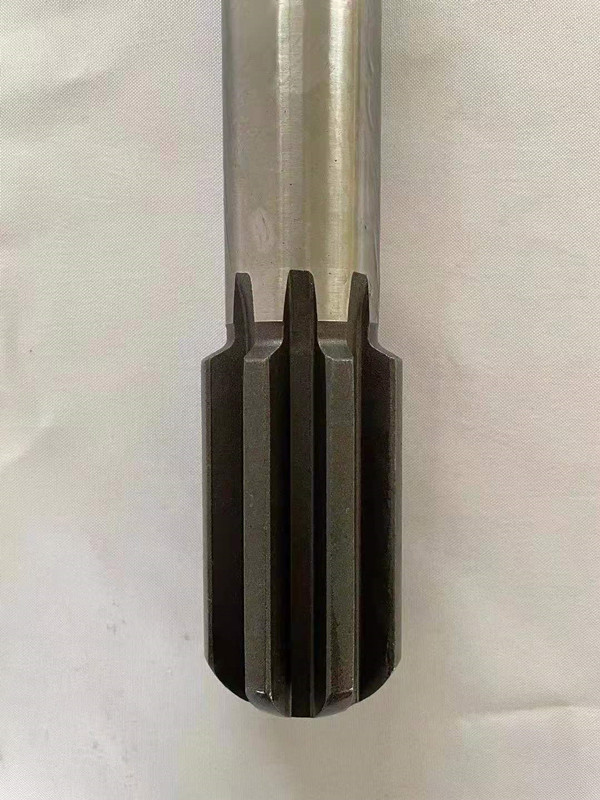

HC109 T38-45*460mm :

HC109 T38-45*460mm packaging:
