Hydraulic Rock Splitter

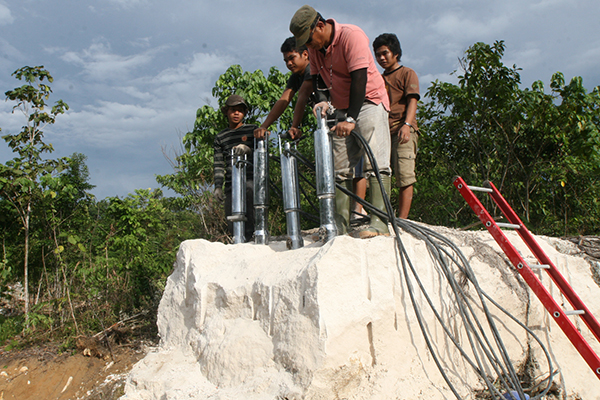

Rock drilling tools manufacturer Prodrill series Hydraulic Rock and Concrete Splitters provide a powerful and cost-effective alternative to other conventional demolition equipment such as Expansive Mortar (High Soundless Cracking Agent), Blasting, Pneumatic Spitting Hammer G10, etc. Used for quarrying, demolition. Type of rock splitter is Mobile and portable,

A complete Prodrill series rock and concrete splitter comprises 3 components:

1. one or several steel/aluminum splitting cylinders

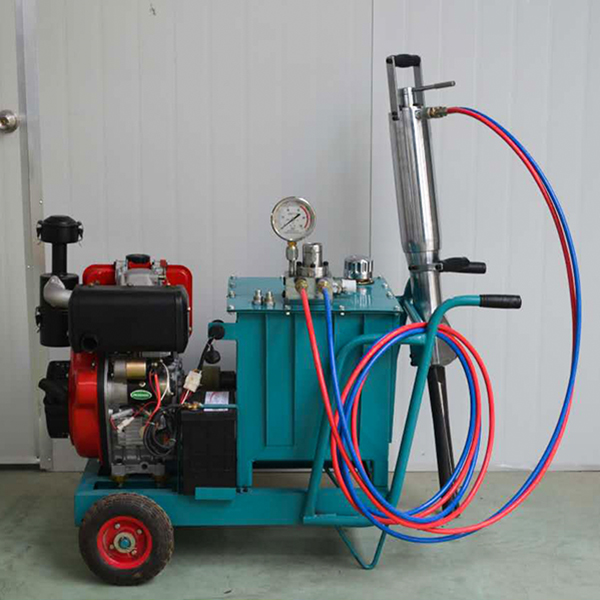

2. one hydraulic pump unit
3. one set of high and low pressure hoses

For the details, Hydraulic concrete splitter is constituted by three parts: hydraulic oil pressure system, oil way system and splitting cylinder. Because the hydraulic oil pressure system is specially designed for the machine, and the connection is exclusive, one full set of Hydraulic Rock Splitter included 1 hydraulic power pump station, plus 3 or more hydraulic cylinders, powered by electricity, or fixed with 7.5HP diesel, gasoline engine, or air motor, of course with full set of hoses, one cylinder with one set of counter wedges and center wedges.

As for the consummation energy, gasoline motor, diesel motor, electro motor, air motor

less 1 liter per hour ,7.5 HP single cylinder, very small cost in consuming of gasoline and diesel, 4 kw for one hour consumed for electric, cost less.

GEDSC DIGITAL CAMERA

Advantage:

1) Splitting force up to 450tons

2) Dust free

3) Quiet performance

4) Also applicable at places of difficult access

5) Vibration free

6) Easy handling

7) Easy to transport

8) Splits in seconds

9) Controlled splitting

10) Dimensional accurate working

Technical specification

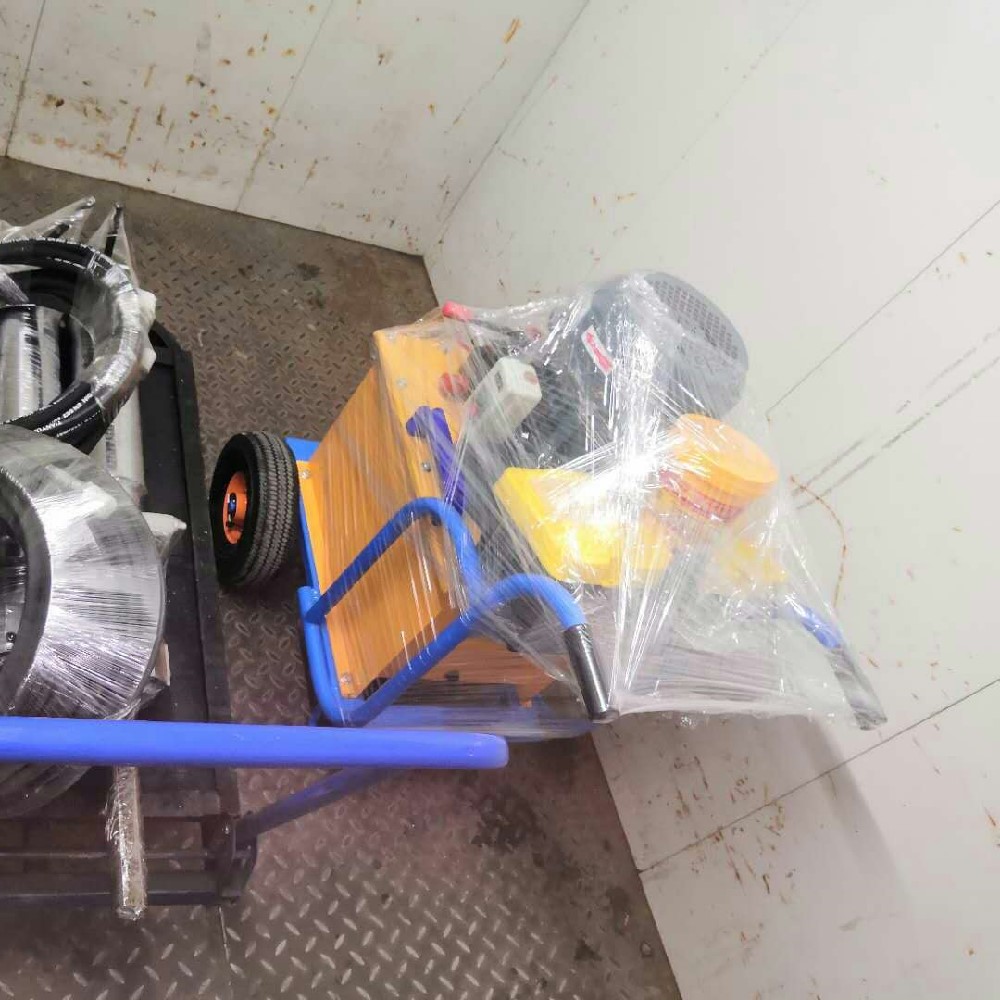

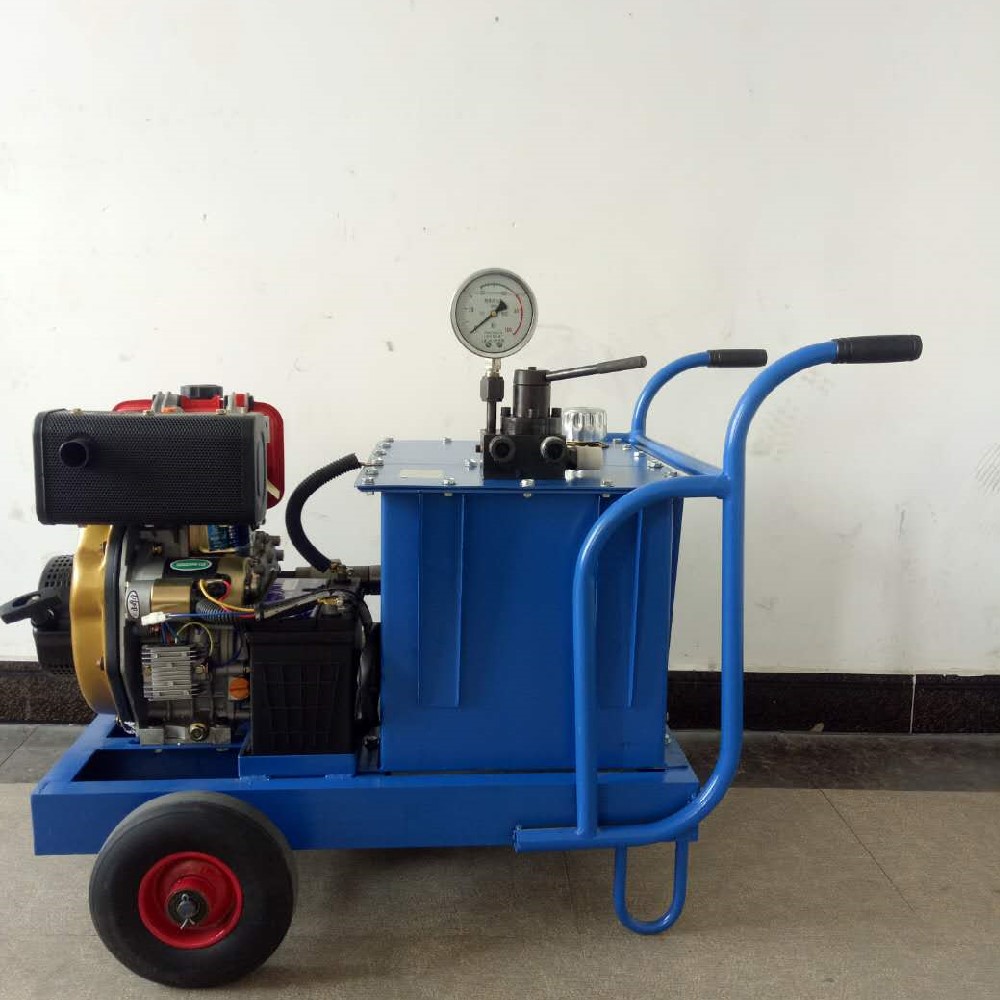

Hydraulic pump unit ( Station)

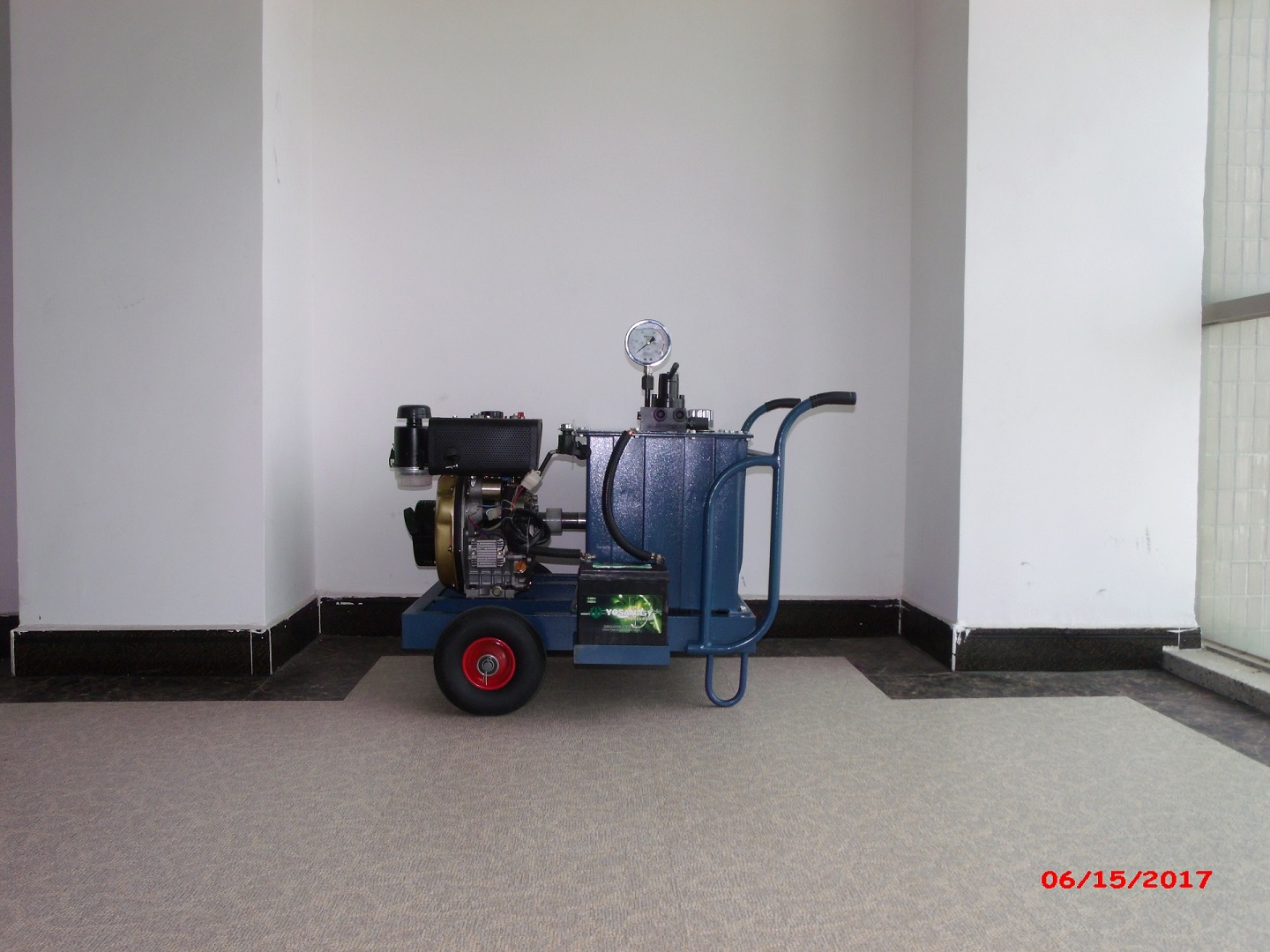

Electric, air, diesel or gasoline motors can be used to drive the high pressure pump

units. The system pressure has been limited to 50Mpa by a pressure limiting valve.

Both mobile and portable pump units are available

.

Depending on the pump model,up to 10 splitting cylinders can be run simultaneously.

As for diesel motor, we can supply air-cooled and water-cooled

System as for customer’s choice, water-cooled type rate is much competitive

Hydraulic hoses：

High and low pressure hoses connect the splitter to the pump unit.

If several splitters are to be connected,a distributor part is attached to the

end of the 10m hose.

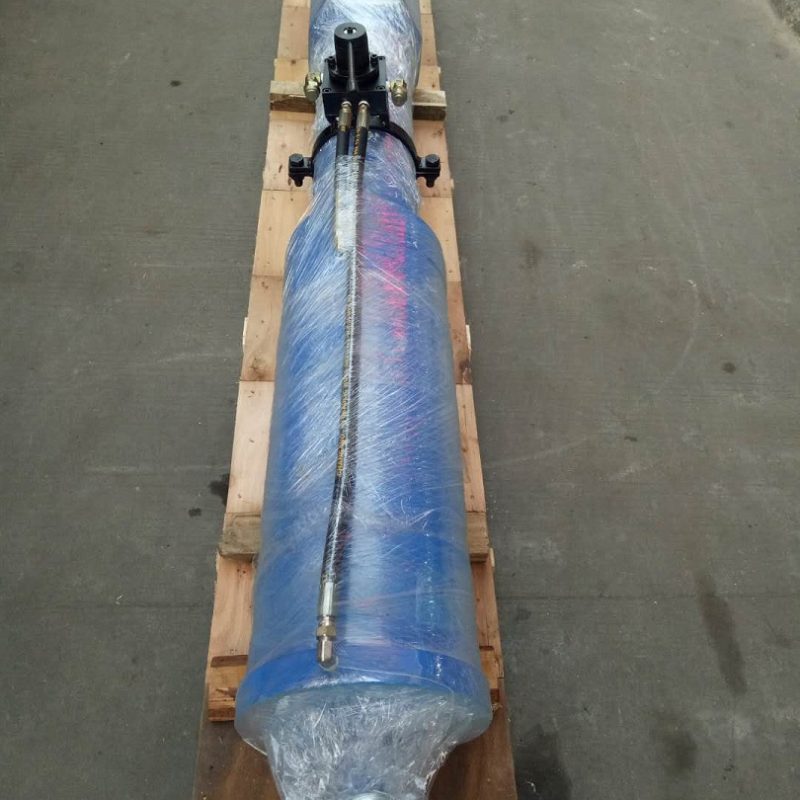

Hydraulic splitting cylinder

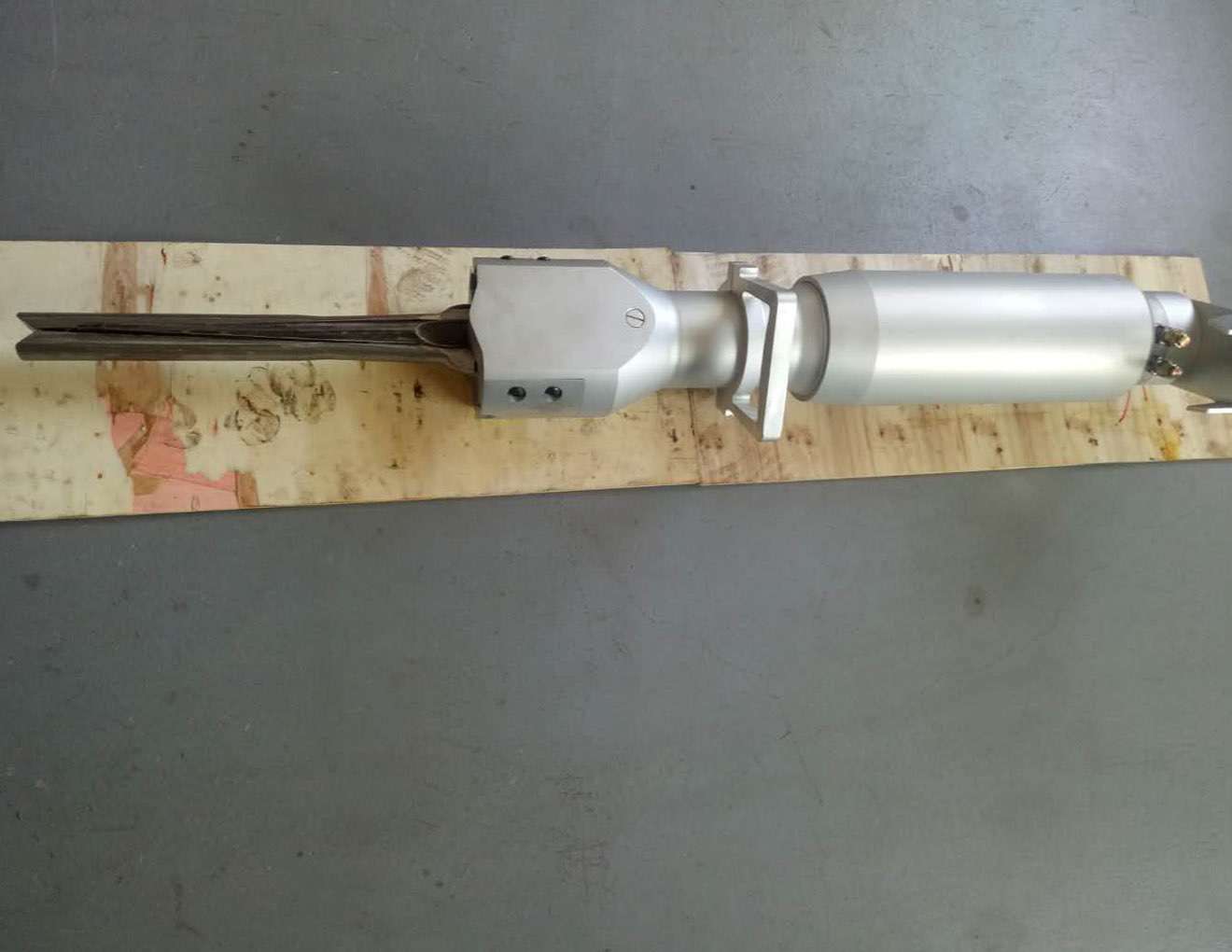

The hydraulic splitting cylinder consists of a control valve,a cylinder,

a front head and a wedge set(1wedge and 2counter wedges).The entire cylinder

is made of highest quality aluminum and steel so that although the equipment

is light,it is still extremely durable.The counter wedges are also coated with

a hard metal(carbide)layer in a specially developed hardening process.This makes them more resistant

to very high pressure and forces.

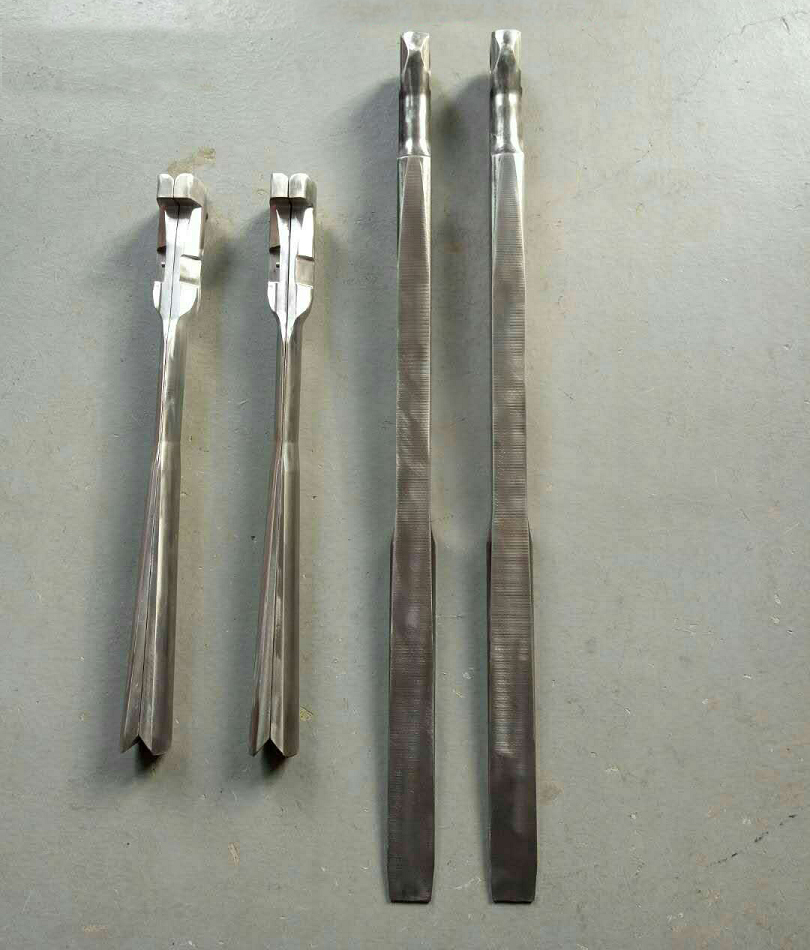

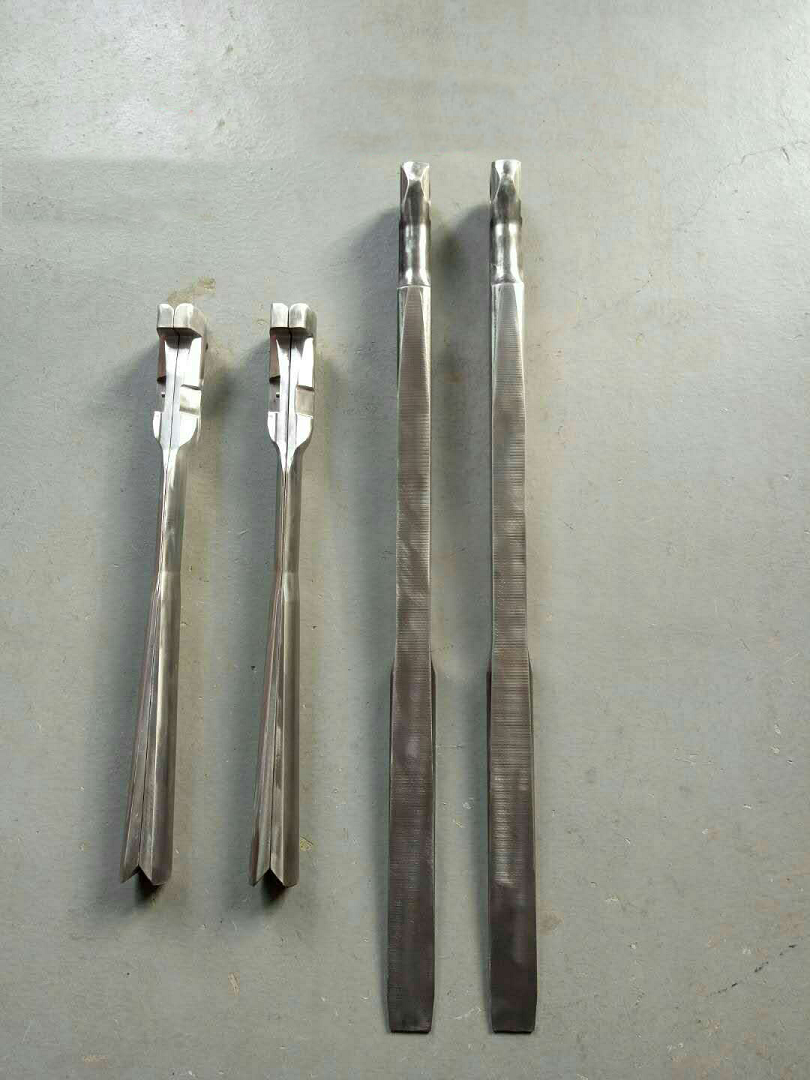

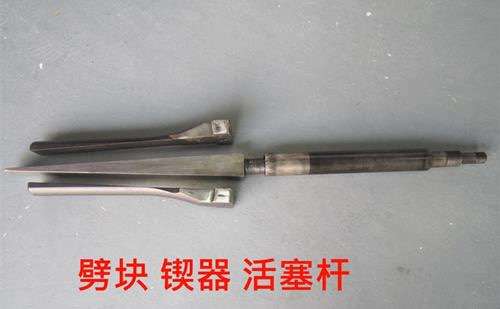

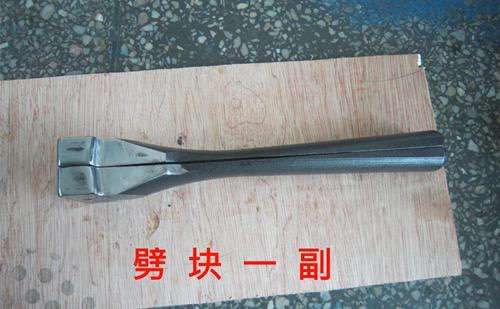

C12 Darda ‘s wedge set ( centra wedge, counter wedges )

Steel Splitting Cylinder

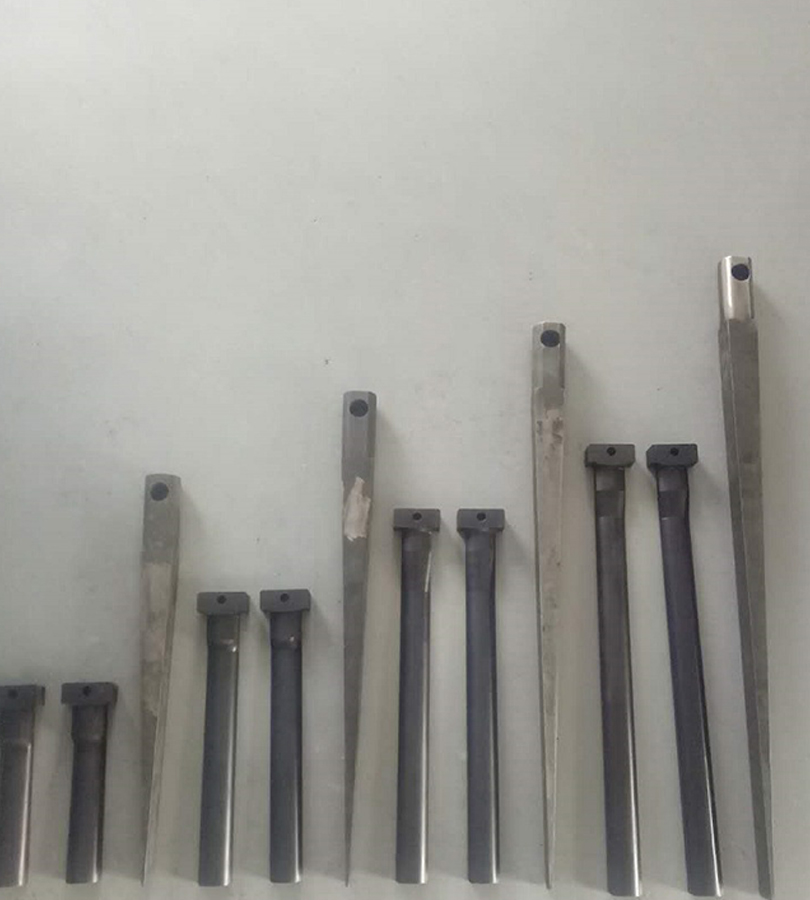

Wedge sets of counter wedge+centra wedge for PD 150,250,350,450 mm

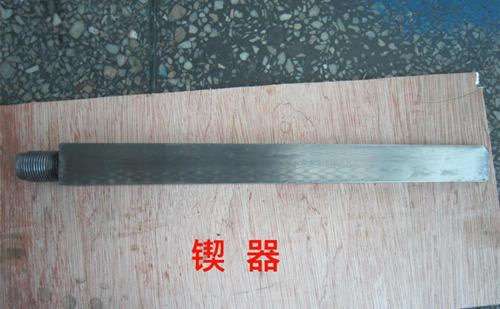

Centre wedge

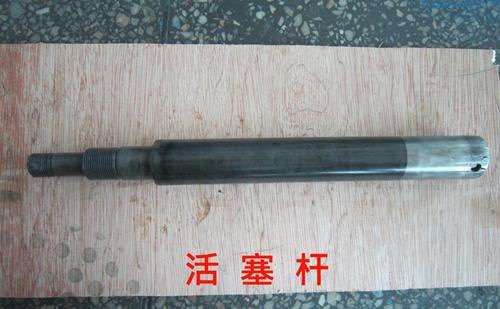

Piston

How the hydraulic splitter works:

ProDrill hydraulic rock splitter with Darda C12 Aluminum Cylinder, hydraulic pump station powered by diesel motor wind cold engine，splitting power up to 800 Tons.
