Hollow Hexagonal Drill Steel

$11.00

ProDrill Hollow Hexagonal Drill Steel has following advantages:

  1. High fatigue strength and toughness, high intension.
  2. High resistance to wear and permanent distortion.
  3. Industrial process of heat treatment.
  4. Uniform straightness, eliminating the need for straightening.
Category: Tags:

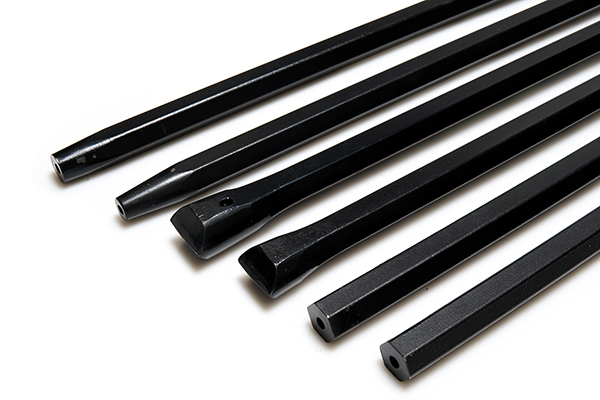

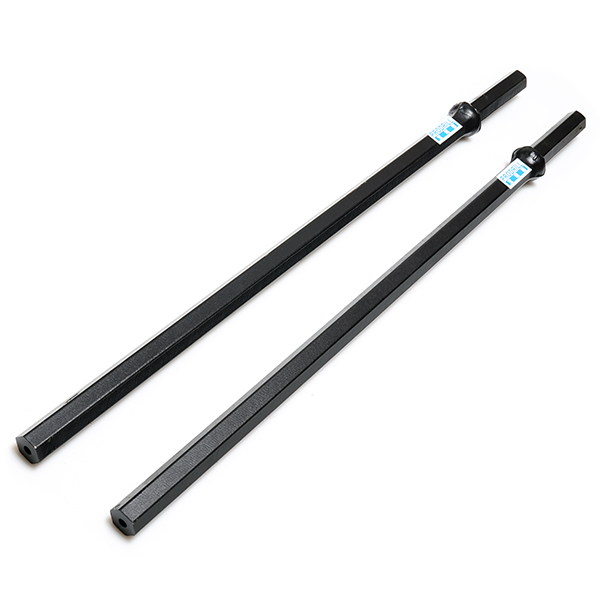

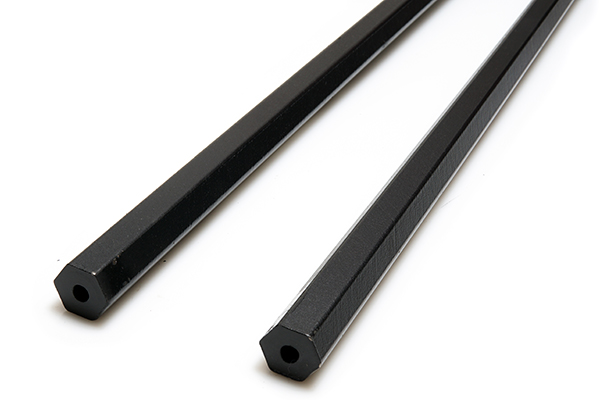

Hollow Hexagonal Drill Steel, is a rock drill steel or integral drill steel without tips. Hollow Drill Steel Bar is a type of steel specially used in drill rod manufacture, high intension and toughness.
Integral drill rod without tip shank sizes 82.5 mm*22mm(3 1/4”*7/8”), 108mm*22mm(4 1/4”*7/8”), 108mm*25mm(4 1/4”*1”), 159,*25mm(6 1/4”*1). Lengths: 400mm to 6400mm(1’4”-21’). Head diameters: 27mm to 40mm.

Type Length(mm)
hex22*108mm 945
1050
1350
1745
1950

Hollow Hexagonal Drill Steel-ProDrill

Material: Z708 (40SiMnCrMo)
Diameter: Hex. 22mm, 25mm, 28mm, 32mm, 38mm.
Length: 800mm, 1600mm, 2400mm, 3200mm or any length according to your requirement.
Package: Wrapped with plastic knitting and then into bundles.
Hot Rolled Hexagonal Hollow Drill Steel

Hollow Hexagonal Drill Steel-ProDrill

Steel Grade: 55SiMnMoMo
Chemical Composition:
C: 0.92-1.03PCT
Si: 0.25-0.45PCT
Mn: 0.25-0.45PCT
Cr: 0.80-1.20PCT
Ni: 0.25PCT MAX
Mo: 0.20-0.30PCT
S,P: 0.025PCT MAX
Cu: 0.30PCT MAX

Hollow Hexagonal Drill Steel-ProDrill

Hollow drill steel reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and advanced industrial process to assure high drilling performance.

Integral Drill Steels, Hollow Hexagonal Drill Rods and Tapered drill rods.

Hollow Hexagonal Drill Steel-ProDrill

For more details,pls visit: Hollow Hexagonal Drill Steel Material specifications.pdf
