G15 （G10/16/20）Pneumatic Hammer Splitter
- Overall Length: 570mm
- Weight: 10kg
- Impact Frequency: ≥16Hz
- Impact Energy: ≥45J
- Air Consumption: ≤26L/S
- Pituitary Diameter: 38mm
- Hose Size: Φ16mm
- Specification of Drill Shank: Φ24*70
- It is used our pressure: 0.63Mpa
Category: Pneumatic Splitter Tags: 32mm Pneumatic Hammer Splitter, G15 Pneumatic Hammer Splitter, Pneumatic Hammer Splitter
Pneumatic splitter is also called pneumatic hammer, air hammer, pick hammer, etc, from rock drilling tools manufacturer ProDrill.
This kind of demolition equipment is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. It can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc.
One complete machine including a pneumatic hammer and one set of forge plug and feathers (3parts),
Major size as below, more sizes are available according to your special request.
Plug and feathers: Length 400mm*Φ34 or Length 600mm*Φ34
Length 400mm*Φ32 or Length 600mm*Φ32

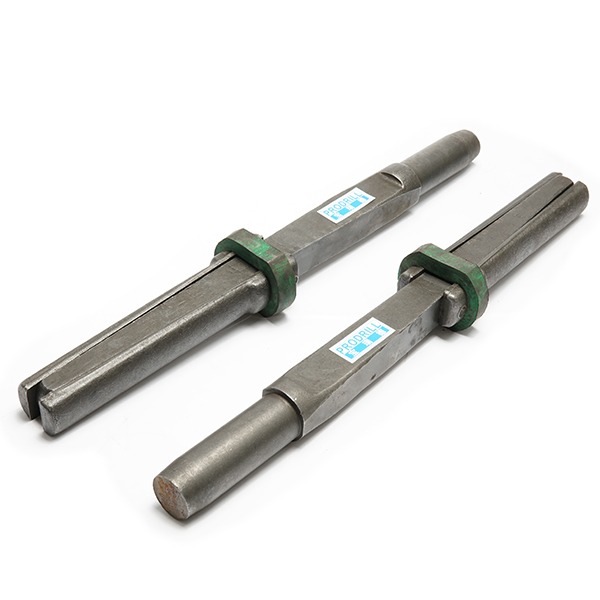

Plugs & Feathers:Diameter 32MM, Length 350MM
Diameter 38MM, Length 420MM

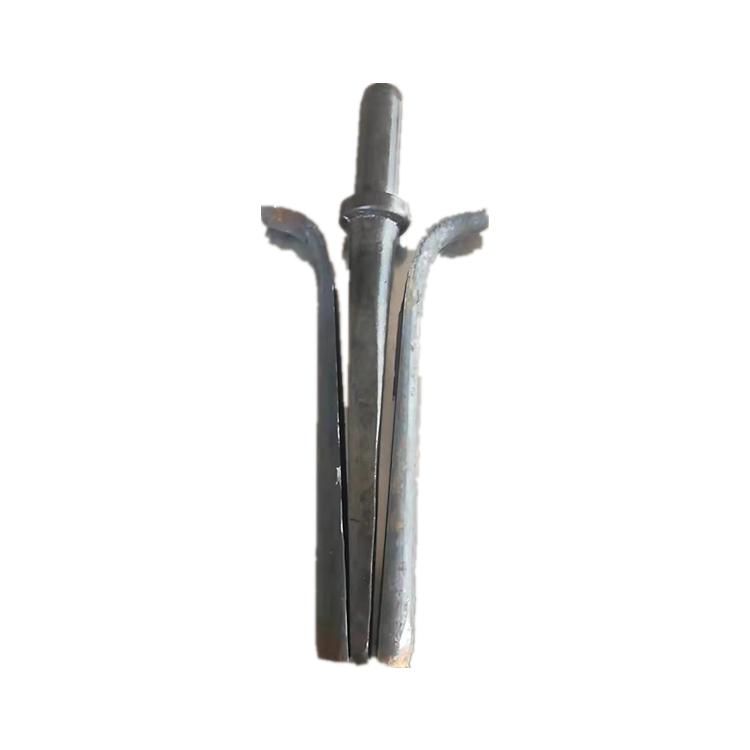

Shims&Wedge for G10/G15/G16/G20
Diameter 32MM, Length 160MM
G15 Plug & Feathers with size of Diameter 32mm Length 350mm to split granite work site:
