G10（G15/16/20） Pneumatic Hammer Splitter
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine.
Rock drilling tools manufacturer ProDrill: Pneumatic splitter, also referred as pneumatic hammer, air hammer, pick hammer, etc.
This kind of machine is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. This demolition equipment can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc.

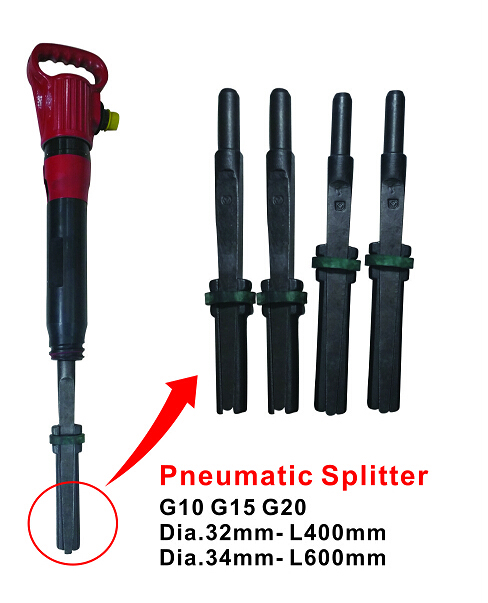

One complete machine including a pneumatic hammer and one set of forge plug and feathers (3parts)
Major sizes as following:
Plug and feathers: Length 400mm*Φ34 or Length 600mm*Φ34
Length 400mm*Φ32 or Length 600mm*Φ32
More sizes are available as per customers’ requirements.
Plugs & Feathers:
Diameter 32MM, Length 350MM
Diameter 38MM, Lenght 420MM

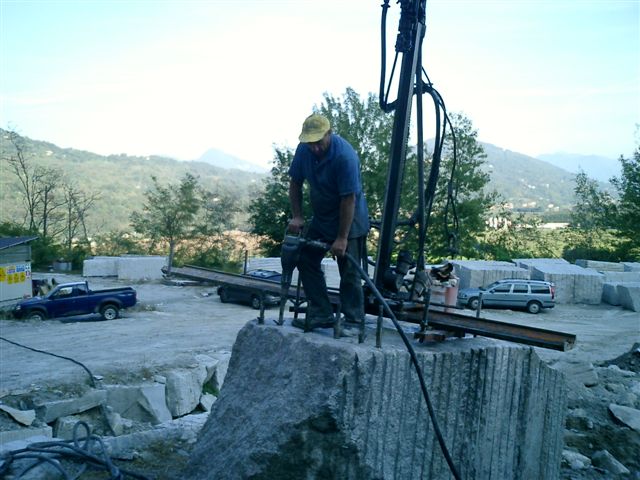

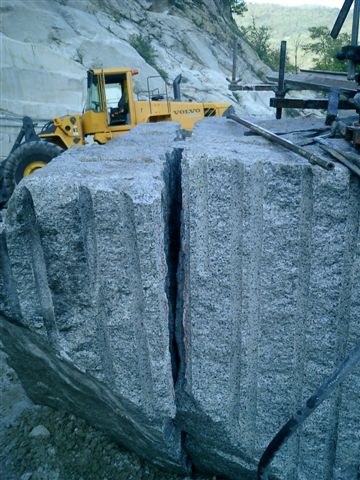

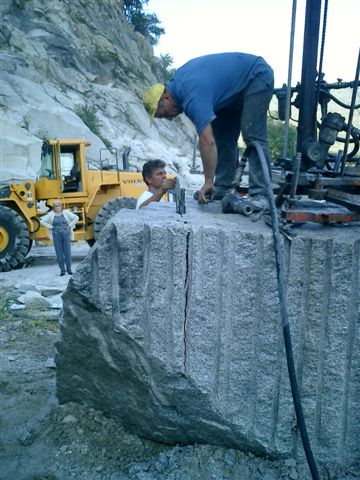

G10 Plug & Feathers with size of Diameter 32mm Length 350mm to split granite work site:
Step 1:
Step 2:
Step 3:
G10 Pneumatic Hammer Splitter Video:
Related products
-
Shims and wedges with rubber clamp for granite splitting
Plug and feather, also known as plugs and wedges, feather and wedges, wedges and shims, pins and feathers and feather and tare, refers to a technique and a three-piece tool set used to split stone.
-
B67C pneumatic breaker (Paving Breaker)
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine. The engine’s governor provided only two speeds:
1.idling, when the clutch was disengaged
2.maximum, when the clutch was engaged and the compressor was running
-
G15 （G10/16/20）Pneumatic Hammer Splitter
- Overall Length: 570mm
- Weight: 10kg
- Impact Frequency: ≥16Hz
- Impact Energy: ≥45J
- Air Consumption: ≤26L/S
- Pituitary Diameter: 38mm
- Hose Size: Φ16mm
- Specification of Drill Shank: Φ24*70
- It is used our pressure: 0.63Mpa
Category: Pneumatic Splitter Tags: 32mm Pneumatic Hammer Splitter, G15 Pneumatic Hammer Splitter, Pneumatic Hammer Splitter
