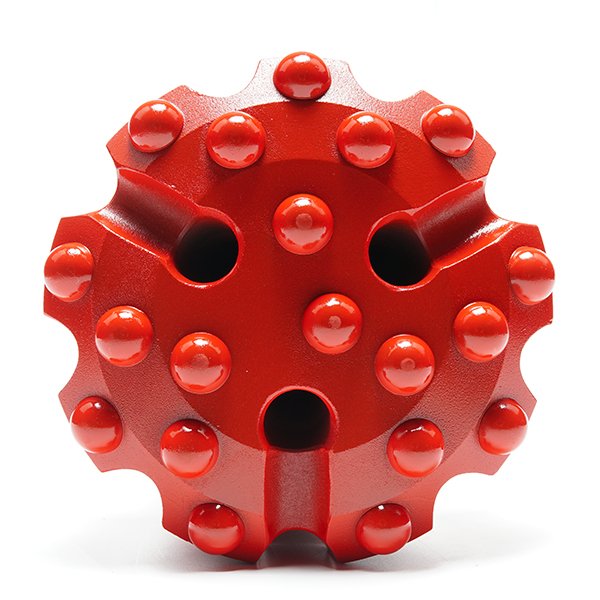

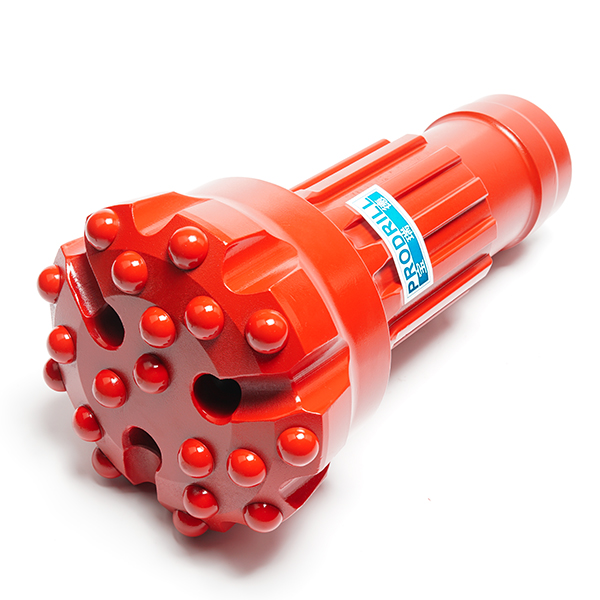

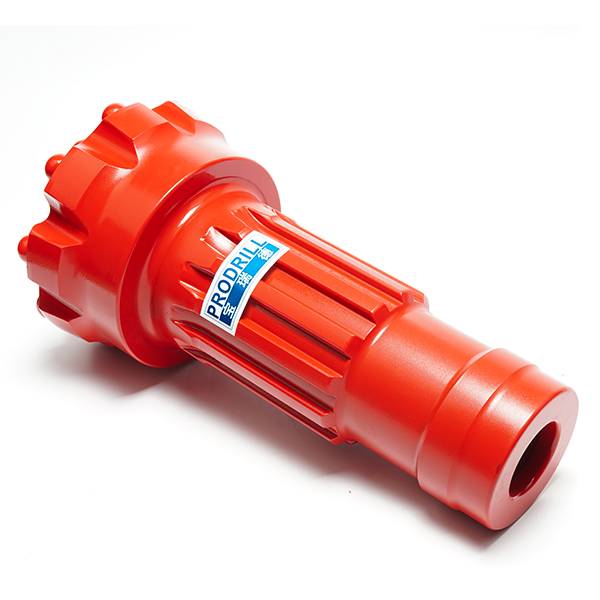

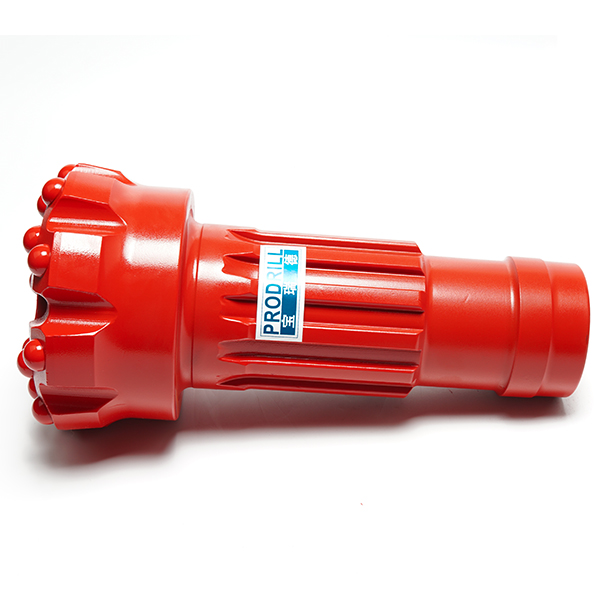

DTH Bit QL60-178 for water well and surface hole drilling

DTH Bit-QL60-178  for deep hole water well and large diameter surface hole drilling

• Code No.: QL60-178
• Diameter: 178mm
• Air Holes No.: 2
• Gauge Buttons: 9*18mm
• Face Buttons: 10*16mm
• Face Design: Convex
• Carbide Design: Dome
• Approx. Weight: 29KGS

Rock drilling tools manufacturer ProDrill produces reliable Down the hole (DTH )Hammer  with QL shank type are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation which are designed to match all conceivable applications for stone quarrying, water well industries, mining and construction.

Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and Down the hole ( DTH ) drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-350mm)。

Convex Face

The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.

A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if the rock is too hard.
For high penetration rate in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

QL shank DTH drill bit with convex face, dome carbide buttons for blasting bore holes, water well drilling.  below photo show DTH Bit-QL60-178 in granite quarry for large diameter surface blasting bore  hole drilling.

For more details please watch PDF online:DTH hammer bits with QL shanks Catalogue
