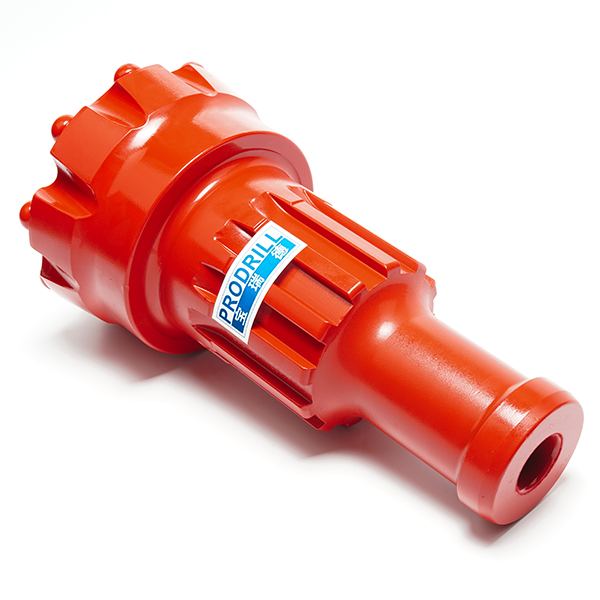

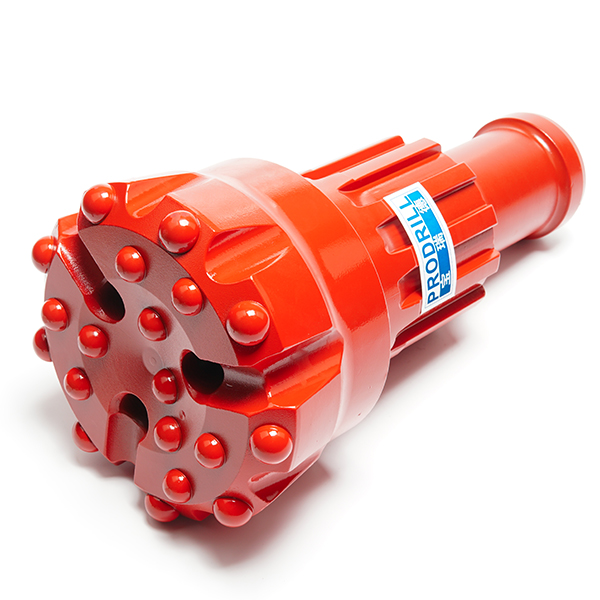

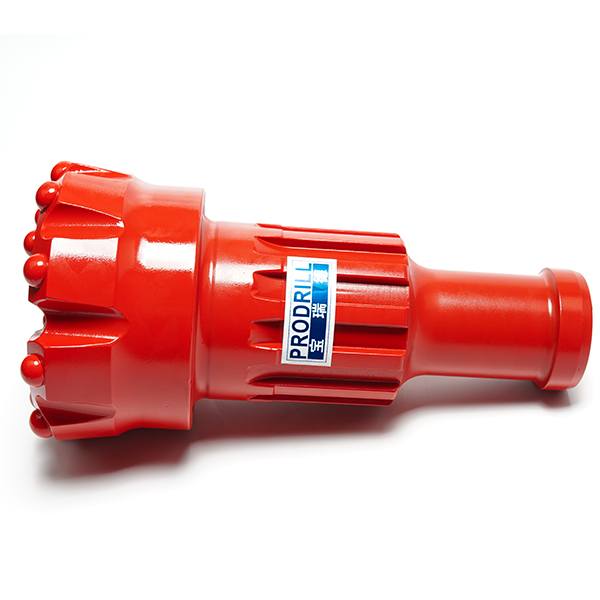

DTH-Bit-M60-165
DTH Drill Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special “stress relief” processes ensure consistent performance.
DTH hammer bits are designed for maximum performance and hole
Rock drilling tools manufacturer ProDrill offers a comprehensive range of DTH drill bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
- Code No.: M60-165
- Diameter: 165mm
- Air Holes No.: 3
- Gauge Buttons: 9*18mm
- Face Buttons: 10*16mm
- Face Design: Concave
- Carbide Design: Dome
- Apporx. Weight: 27.0KGS
Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH rock drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)

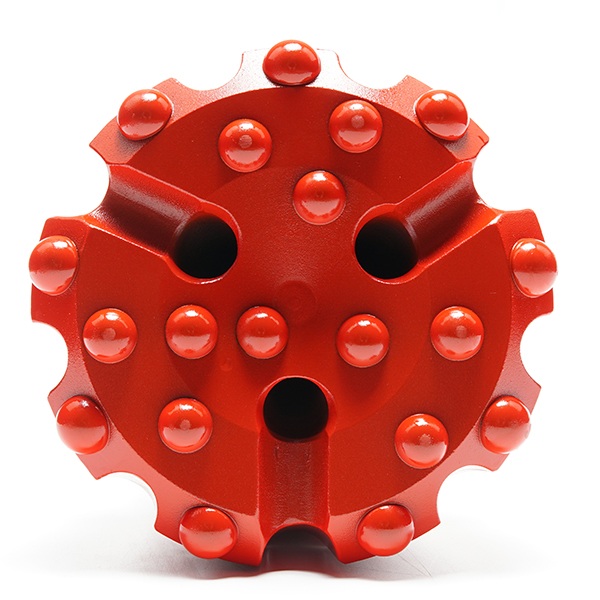

Concave Face
The all around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
M shank DTH drill bit with flat face, 19 dome carbide buttons for blasting bore holes, water well drilling.
PDFFor more details please watch PDF online: DTH hammer bits with M shanks Catalogue
