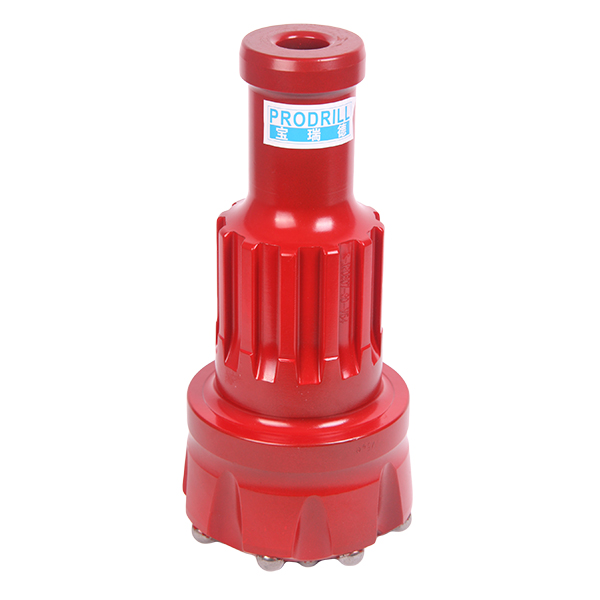

DTH Bit-M60-152
1.Improved steel grade for better fatigue properties
2.Five basic front designs
3.Designs for all rock types
Rock drilling tools manufacturer ProDrill has a comprehensive range of DTH hammer bits with M shanks type for a various range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)
- Diameter: 152mm
- Air Holes No.: 2
- Gauge Buttons: 8*17mm
- Face Buttons: 8*14mm
- Approx. Weight: 26.0KGS
- Bit Face Type: Concave face
- Carbide Design: Dome
Concave Face
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

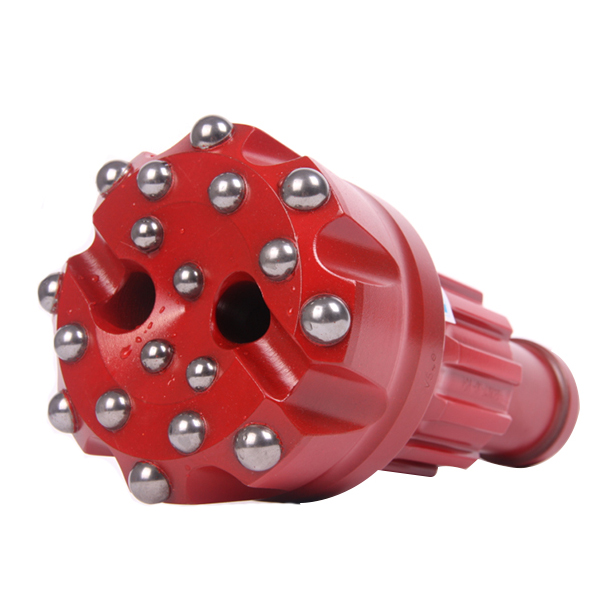

DTH drill bit with concave face, 16 dome carbide buttons for blasting bore holes, water well drilling.
For more details please watch PDF online: DTH hammer bits with M shanks Catalogue
