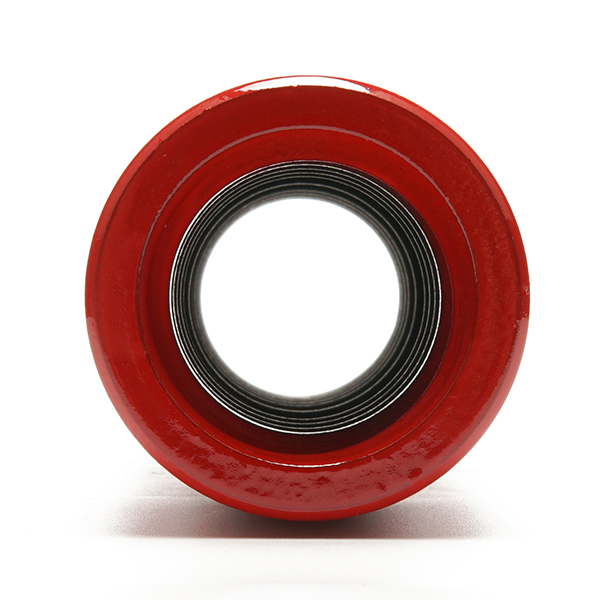

Coupling Sleeves Semi-Bridge Type T38-190 mm
- Code No.: SB-T38-T38-L190-D55
- Model: T38 Series
- Length: 190mm
- Diameter: 55mm
- Thread: T38-T38
- Type: Semi-Bridge

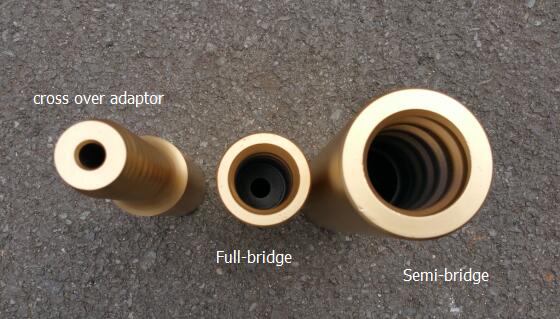

Semi-Bridge Coupling is a most use for coupling sleeves in market, product features as follow:
• Small non-threaded bridge in the center
• Steel cannot thread past bridge area
• Smaller diameter steel end portions fit together in the center bridge area of the coupling
• Semi-bridged couplings are most suited to high torque machines
• Most rope and HM threaded couplings are semi-bridged.

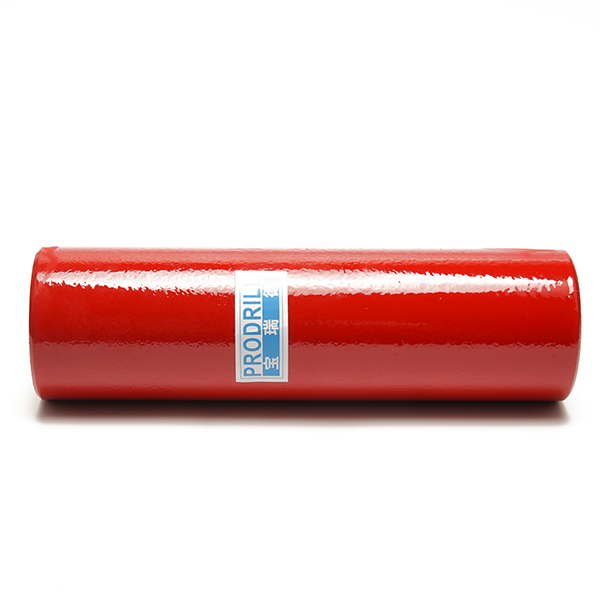

T38-190 semi-bridge type coupling
For more details please watch PDF online: Coupling Sleeves Catalogue
Related products
-
Q7-38-1122-50 Tapered Button Bit
- Code No.: Q7-38-1122-50
- Diameter: 38mm
- Length: 50mm
- Tapered Degree: 11°
- Carbide Dimension: 8mm*7
- Carbide Design: Semi-Ballistic
- Water Holes: 2 on front, 5 on side
- Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year,tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory,Offers industry-leading strength and penetration rates for more productivity.Excellent straightness and hole clean quality,Get max.drilling performance.
-
S1-32-722-67 Tapered Cross Bit
- Code No.: S1-32-722-67
- Diameter: 32mm
- Length: 67mm
- Tapered Degree: 7°
- Carbide Dimension: 12mm*8mm
- Water Holes: 1 on front, 2 on side
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity. Excellent straightness and hole clean quality ,Get max . drilling performance.
-
Y3-32-722-76-Tapered Chisel Bit
- Diameter: 32mm
- Length: 76mm
- Carbide Dimension: 12mm*8mm
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.
