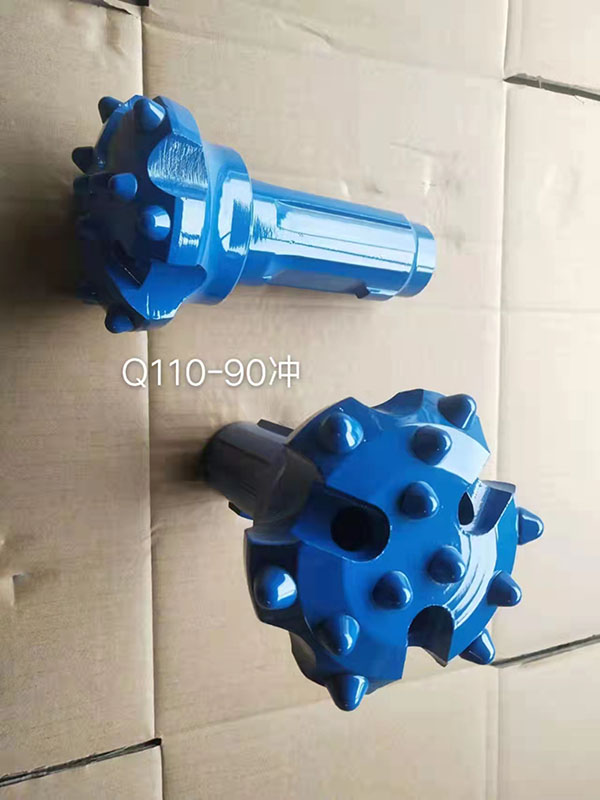

CIR 90-110mm Low Air Pressure DTH Hammer Bit

Code No.: CIR 90-110
Diameter: 90mm
Gauge Buttons: 6
Front Buttons: 6
Carbide Design: Ballistic
Face Design: Convex
Shank Type: CIR

Category:

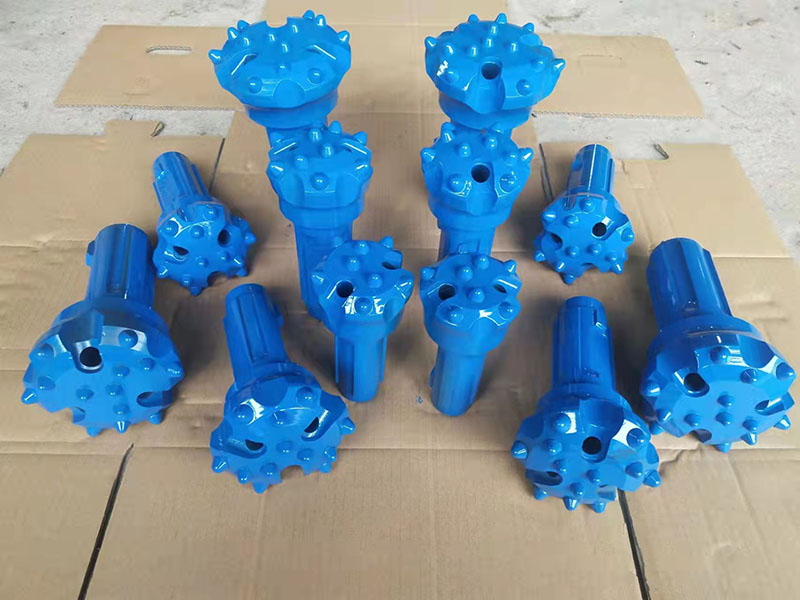

ProDrill rock drilling tools manufacturer has a full range of DTH drill bits with CIR shanks type for a wide range of hole sizes, which are designed to match all conceivable applications for water well industries, stone quarrying, mining and construction.

CIR 90-110mm Low Air Pressure DTH Hammer Bit-ProDrill​

CIR Shank Low Air Pressure DTH Hammer Bit:

CIR 90-110mm Low Air Pressure DTH Hammer Bit-ProDrill

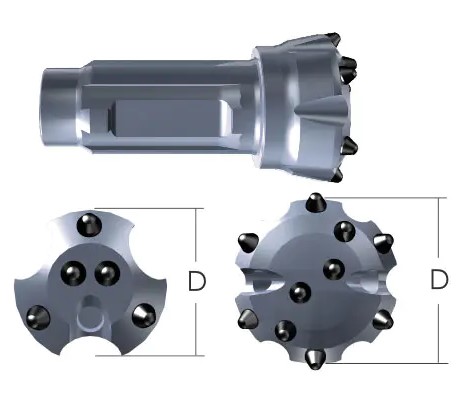

Drill Bit Bit diameter(mm) Splin quantity Gauge Buttons
CIR50 50 4 3×φ10
CIR50 55 4 3×φ10
CIR60 60 4 3×φ12
CIR65 65 4 4×φ12
CIR70 76 4 5×φ12
CIR90 90 6 6×φ14
CIR90 100 6 6×φ14
CIR90 105 6 6×φ14
CIR90 110 6 6×φ14
CIR90 120 6 6×φ14
CIR90 130 6 7×φ14
CIR110 110 6 6×φ14
CIR110 120 6 6×φ14
CIR110 125 6 7×φ14
CIR110/CIR130 130 6 7×φ14
CIR110/CIR130 140 6 8×φ14
CIR110/CIR130 150 6 8×φ14
CIR150 150 6 9×φ16
CIR150 165 6 9×φ16
CIR150 175 6 9×φ16
CIR150 185 6 9×φ16
CIR150 200 6 9×φ16
CIR170 175 6 9×φ16
CIR170 185 6 9×φ16
CIR170 200 6 9×φ16
CIR170 220 6 12×φ16
CIR170 250 6 12×φ16

DTH hammer bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm).

CIR 90-110mm Low Air Pressure DTH Hammer Bit-ProDrill

Advantages

1.Improved steel grade for better fatigue properties

2.Five basic front designs

3.Designs for all rock types

CIR90-110 DTH Hammer

CIR 90-110mm Low Air Pressure DTH Hammer Bit-ProDrill

CIR76 Hammer to match CIR110-1130mm DTH Hammer Bits

CIR 90-110mm Low Air Pressure DTH Hammer Bit-ProDrill
