3″ DHD Hammer
Rock drilling tools manufacturer Prodrill DTH hammers are available in sizes from 2″ to 20″ for Down The Hole hammer bits are available in sizes from 2″ to 36″, with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
ProDrill DTH hammer products offers a wide range of quality, versatile DTH hammers to interchangeable, or replace a number of leading industry manufacturers. Hammers are available for down hole and blast hole, water well, gas, mining applications and use in nearly all ground conditions. Most DTH hammers are designed for use with the industry\’s most common rock drill bits shank types such as DHD, QL, Cop, Mission, SD, Numa, BR.

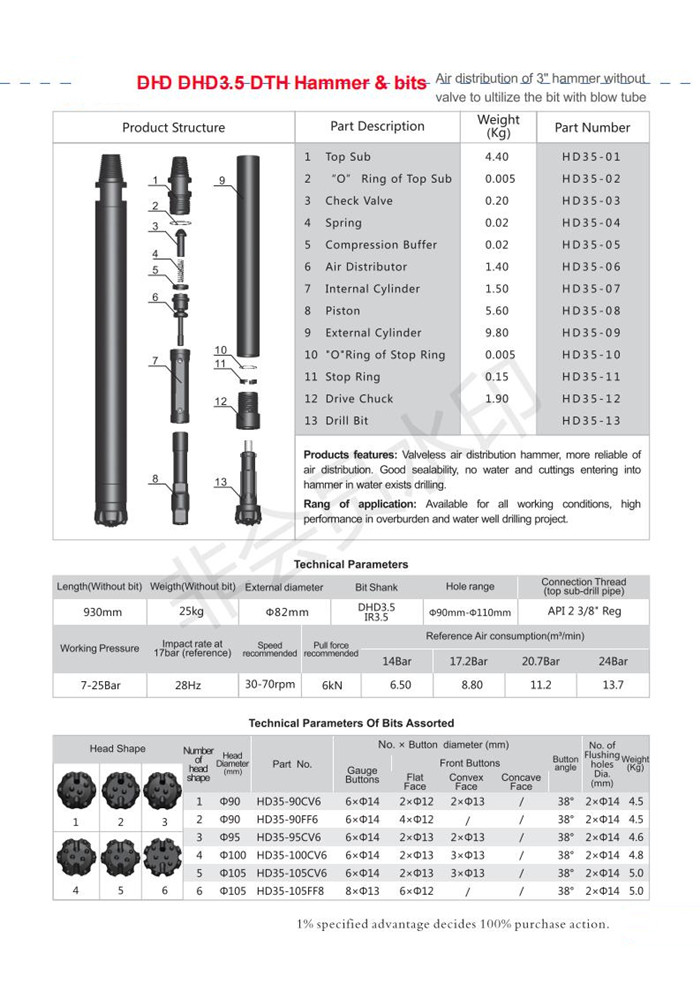

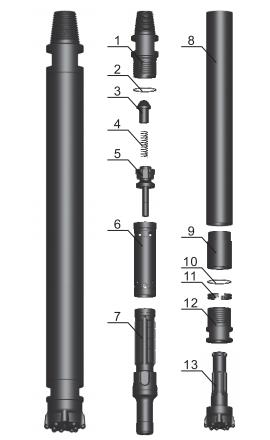

3″ DHD Hammer structure
3″ DHD Hammer Parameters, pls see bleow details :
Related products
-
Pneumatic Hammers P-110-2,8MR MH 60.00
- Bit coupling type:Bayonet:
- Percussive capacity, kW:2,8:
- Nominal pressure, MPa:0,5:
- Air consumption, m3/min:7:
- Diameter, mm:98:
- Length, mm:667:
- Connecting thread:72×10:
- Weight, kg:24:
- Wrench:Wrench 85; Wrench 90:
-
Back Hammer
Back Hammer: In case of jamming of any driling tool during the boring process, the back hammer will help you save time and money. The back […]
-
CIR90 DTH hammer with sub top thread F48*N10
High efficiency and tunable valved air cycle to optimize performance on your compressor. Many models also feature a heat resistant steel valve which keeps on working even in the most demanding quarry and mining applications.
